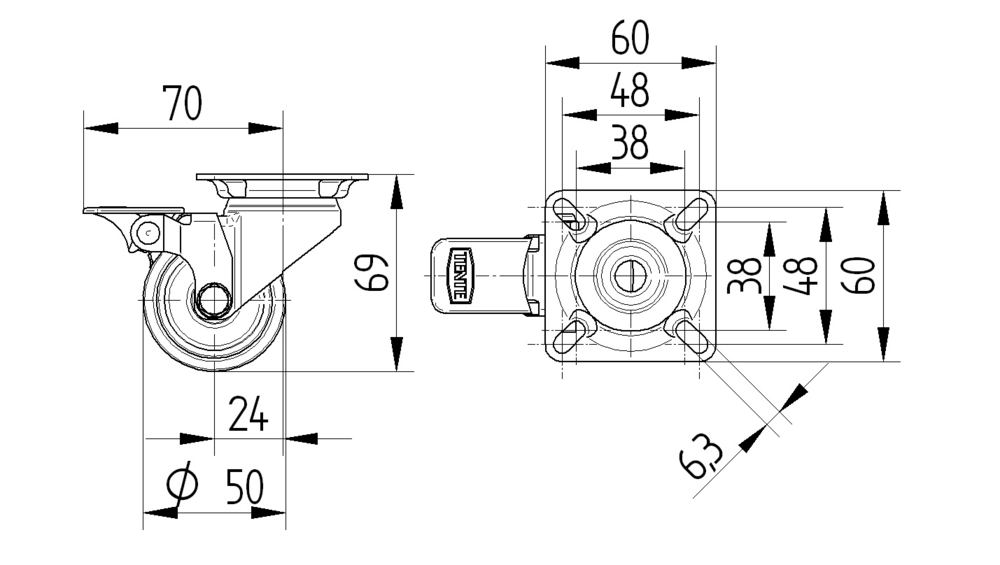

CAD files

Agila stainless is a swivel castor with wheel brake designed for demanding material handling environments, and it combines a robust stainless steel construction with reliable mobility for professional use. The fitting is a square plate, which provides a secure and stable mounting interface for attaching the castor to the underside of a trolley, cart or equipment base. The housing is manufactured from medium stainless steel and features two ball races in its swivel bearing, which ensure smooth, low-friction rotation and consistent directional control under load. The wheel has a diameter of 50 mm and runs on a plain bearing, while its tread is made from thermoplastic rubber for quiet operation and good floor grip, and its body is made from polypropylene for lightweight yet durable performance. The overall height of the castor is 69 mm, which allows it to be integrated into applications where limited clearance is a consideration. The castor offers a static load capacity of 80 kg and a dynamic load capacity of 40 kg at a travel speed of 3 km/h, making it suitable for catering carts, meal delivery systems and professional cleaning carts.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
7475PJO050P40
EAN
4031582350975
S4 Material Number
990036676
Core attributes
Type
Swivel castor with wheel brake
Overall width
43 mm
Load capacity at 3 km/h
40 kg
Load capacity Static
80 kg
Overall Height
69 mm
Temperature range (Maximum)
60 °C
Temperature range (Minimum)
-20 °C
Overall weight
0.2 kg
Product Name
Agila stainless
Standard
EN12530 - Devices Castors
Electric Conductive
Stainless
Fitting
Fitting type
Square plate
Plate hole diameter
6.3 mm
Plate hole length (Maximum)
48 mm
Plate hole length (Minimum)
38 mm
Plate hole width (Maximum)
48 mm
Plate hole width (Minimum)
38 mm
Plate length
60 mm
Plate width
60 mm
Housing
Housing Color
Stainless steel
Fork shape
Broad
Housing Material
Stainless steel, medium
Swivel Bearing
Two ball races
Dome diameter
41 mm
Swivel interference
140 mm
Offset
24 mm
Swivel radius
70 mm
Wheel
Hardness of tread (A)
87 Shore A
Body material
Polypropylene
Tread Material Mix
Thermoplastic rubber
Tread width
19 mm
Diameter
50 mm
Body width
19 mm
Threadguards
Without threadguard
Bearing
Plain bearing
Wheel Color
Silver grey (RAL7001)
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Prevents unintended movement
Wheel lock for manual operation
Variable fitting options
Different fitting dimensions for a large range of applications.
Resource-conserving part replacement
Threaded axles allow effortless wheel change.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Easy steering
Double ball bearing swivel head.
Permanent washability
All metal components made of stainless steel.
Low maintenance materials
All metal components made of Aluminum or rust-free stainless steel.
