The Agila care is a swivel castor with central, total lock, designed for demanding care environments. The fitting is a stem with a cam hole for profile bars, supplied in the short version, which allows secure connection to the bed or frame structure. The housing is manufactured from medium steel sheet and incorporates two ball races in the swivel bearing, ensuring smooth and reliable rotation under load. The wheel has a diameter of 150 mm and runs on a plain bearing, with a tread made of thermoplastic rubber and a body made of polypropylene. Dimensionally, the overall height of the castor is 188 mm, which must be considered when integrating it into the frame design. The static load capacity is 200 kg, while the dynamic load capacity is 100 kg at a speed of 3 km/h. The product is intended for use in Care Beds, Hospitals, and Nursing and Retirement Homes.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
2476PJO150R36-32S30 4xM6
EAN
4031582301786
Core attributes
Type
Swivel castor with central, total lock
Load capacity at 3 km/h
100 kg
Load capacity Static
200 kg
Overall Height
188 mm
Temperature range (Maximum)
60 °C
Temperature range (Minimum)
-20 °C
Overall weight
1.02 kg
Product Name
Agila care
Standard
EN12530 - Devices Castors
Electric Conductive
Stainless
Fitting
Fitting type
Stem with cam hole for profile bars, short version
Bolt diameter
32 mm
Bolt length
51 mm
Housing
Housing Color
Blue passivated
Fork shape
Broad
Housing Material
Steel sheet, medium

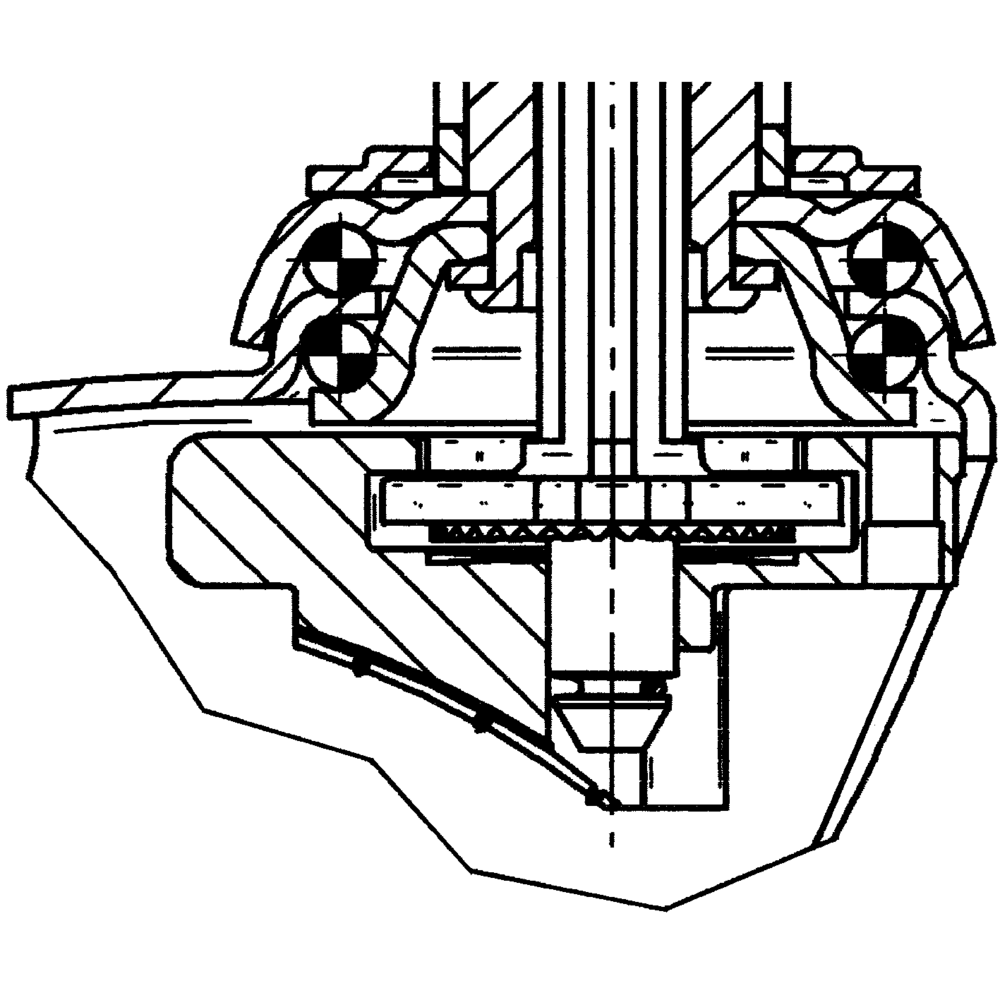

Swivel Bearing
Two ball races
Swivel interference
240 mm
Offset
45 mm
Swivel radius
120 mm
Wheel
Hardness of tread (A)
87 Shore A
Body material
Polypropylene
Tread Material Mix
Thermoplastic rubber
Tread width
32 mm
Diameter
150 mm
Threadguards
Without threadguard
Bearing
Plain bearing
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Prevents unintended movement
Wheel lock for manual operation
Sterile cleaning
Wheels for steam sterilisation in autoclaves used in sterile areas.
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Easy steering
Double ball bearing swivel head.
