Swivel castor 125 mm
- Non-hazardous materials
- Tested quality
- Variable fitting options
CAD files
Data sheets
Crossselling
The Agila stainless fixed castor features a rectangular plate fitting with the longside of plate positioned 90° off track for optimal mounting configuration. The housing is constructed from stainless steel, medium grade, providing excellent corrosion resistance and durability in demanding environments. The wheel incorporates a polypropylene body with thermoplastic rubber tread material for superior grip and floor protection, supported by a reliable plain bearing system, with a diameter of 125 mm ensuring smooth rolling performance. The castor has an overall height of 160 mm, making it suitable for various industrial applications. Load specifications include a dynamic capacity of 100 kg at speeds up to 3 km/h and a static load capacity of 200 kg, making it ideal for catering carts & meal delivery systems and professional cleaning carts where reliable mobility and load-bearing performance are essential.

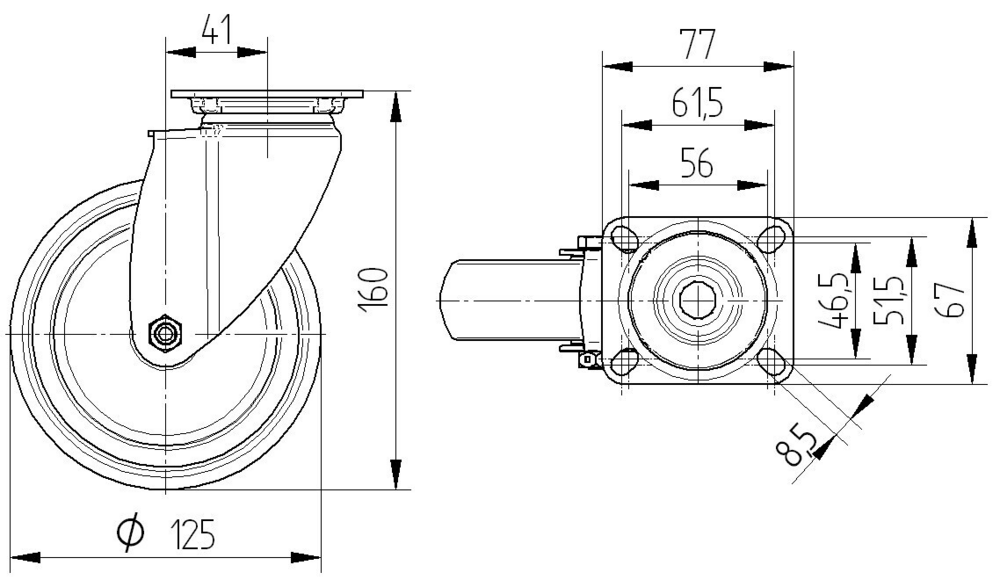

The Agila stainless swivel castor with total lock features a rectangular plate fitting for secure mounting applications. The housing is constructed from medium-grade stainless steel and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and enhanced durability. The wheel comprises a polypropylene body with thermoplastic rubber tread material, providing excellent grip and floor protection, whilst utilising a plain bearing system for reliable rotation. With a wheel diameter of 125 mm, the castor achieves an overall height of 160 mm. Load specifications include a dynamic capacity of 100 kg at speeds up to 3 km/h and a static load capacity of 200 kg. This castor is specifically designed for demanding applications including catering carts and meal delivery systems, as well as professional cleaning carts, where hygiene, manoeuvrability, and secure locking functionality are essential requirements.
