Fixed castor 45 mm
Compacta
EAN:
4031582477542
Product number:
2198UOI045P60-67x24,5-TFR
- Non-hazardous materials
- Tested quality
- Solid housing
The Compacta fixed castor features a rectangular plate fitting and steel sheet, medium housing construction for reliable perform...
Details
Custom or high volume? Request a quote now.
Data sheets

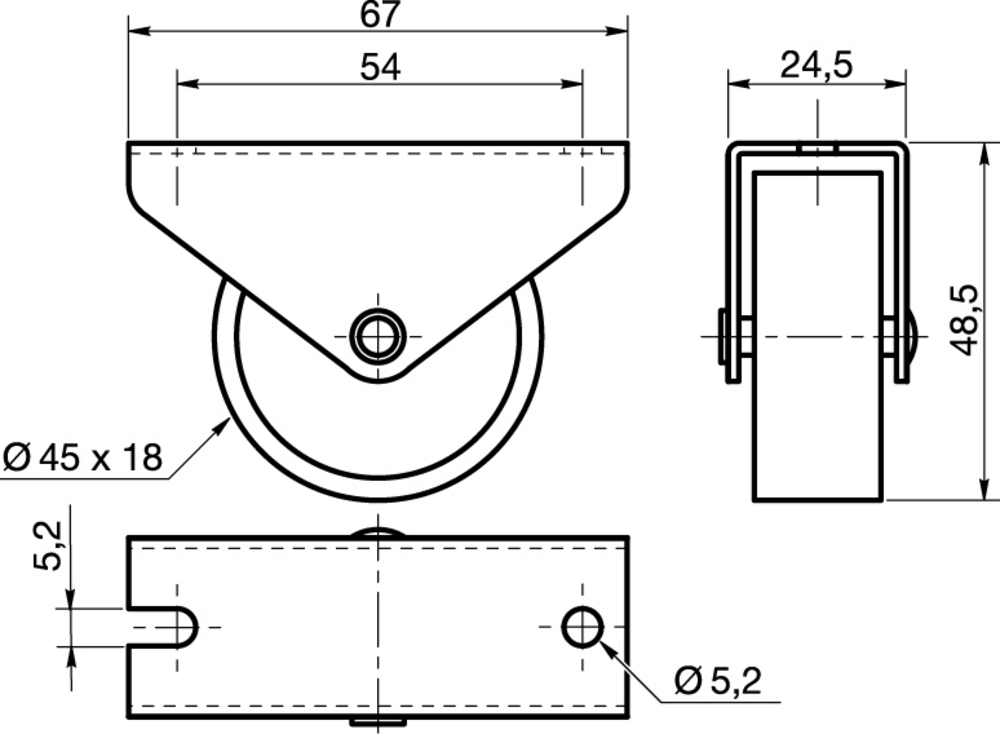

The Compacta fixed castor features a rectangular plate fitting and steel sheet, medium housing construction for reliable performance in industrial applications. The wheel incorporates a polyamide body with tread material identical to the wheel body, supported by a plain bearing with spacer tube system that ensures smooth operation and extended service life. The wheel diameter measures 45 mm, whilst the overall height of the complete assembly is 48.5 mm, making it suitable for compact installations where space constraints are critical. Load capacity specifications include a dynamic rating of 40 kg at speeds up to 3 km/h and a static load capacity of 80 kg, providing versatile performance for light to medium-duty applications requiring dependable mobility solutions.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
