Wheel 85 mm
Novatech
Order number:
199839177
EAN:
4031582330304
Product number:
ETP 085x80-Ø20 HL80
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring an 85 mm diameter...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

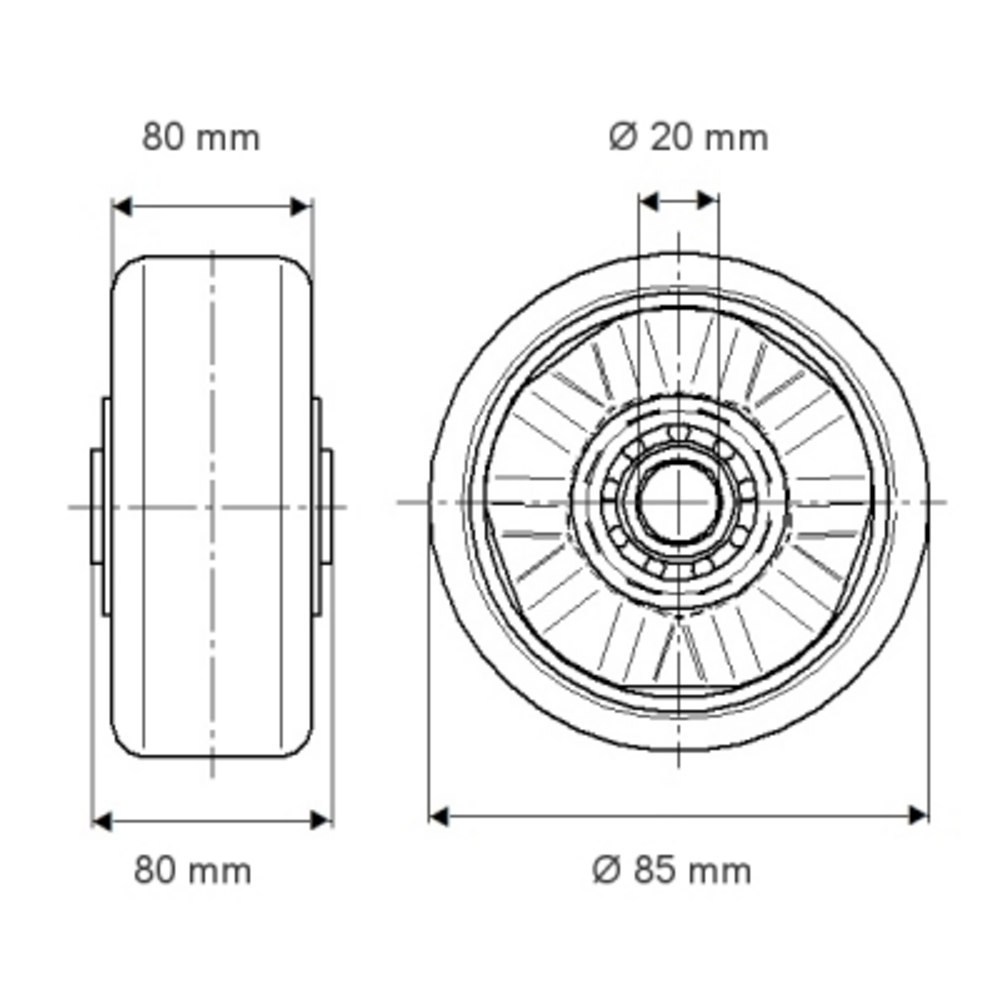

The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring an 85 mm diameter with an 80 mm tread width and an 80 mm hub length. The wheel body is constructed from steel and iron, providing robust structural integrity, whilst the tread is manufactured from polyurethane, casted to ensure durability and optimal performance. The wheel is equipped with a precision ball bearing and accommodates an axle hole diameter of 20 mm for secure mounting. Load capacity specifications indicate a static load rating of 1600 kg, with dynamic load capacities of 640 kg at 6 km/h and 800 kg at 4 km/h, making this wheel suitable for both light and medium-duty material handling and transport applications where reliable performance and longevity are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
