Wheel 160 mm
Novatech
EAN:
4031582444865
Product number:
ITP160x50-Ø20 NL60 super convex R25
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision-engineered castor component featuring a 160 mm diameter with a 50 mm wide polyurethane casted ...
Details
Custom or high volume? Request a quote now.
Documents
- Kappa.pdf
- electrostatic_discharge_capacity.pdf
- Solutions_for_mechanical_engineering___workshops.pdf
- Solutions_for_the_entertainment_industry.pdf
- Solutions_for_the_automotive_industry.pdf
- Solutions_for_intralogistic.pdf
- Delta.pdf
- Polyurethane_Wheels_Novatech___Ultratech.pdf
- Product_brochure_Omikron_EN__1_.pdf
- Alpha.pdf

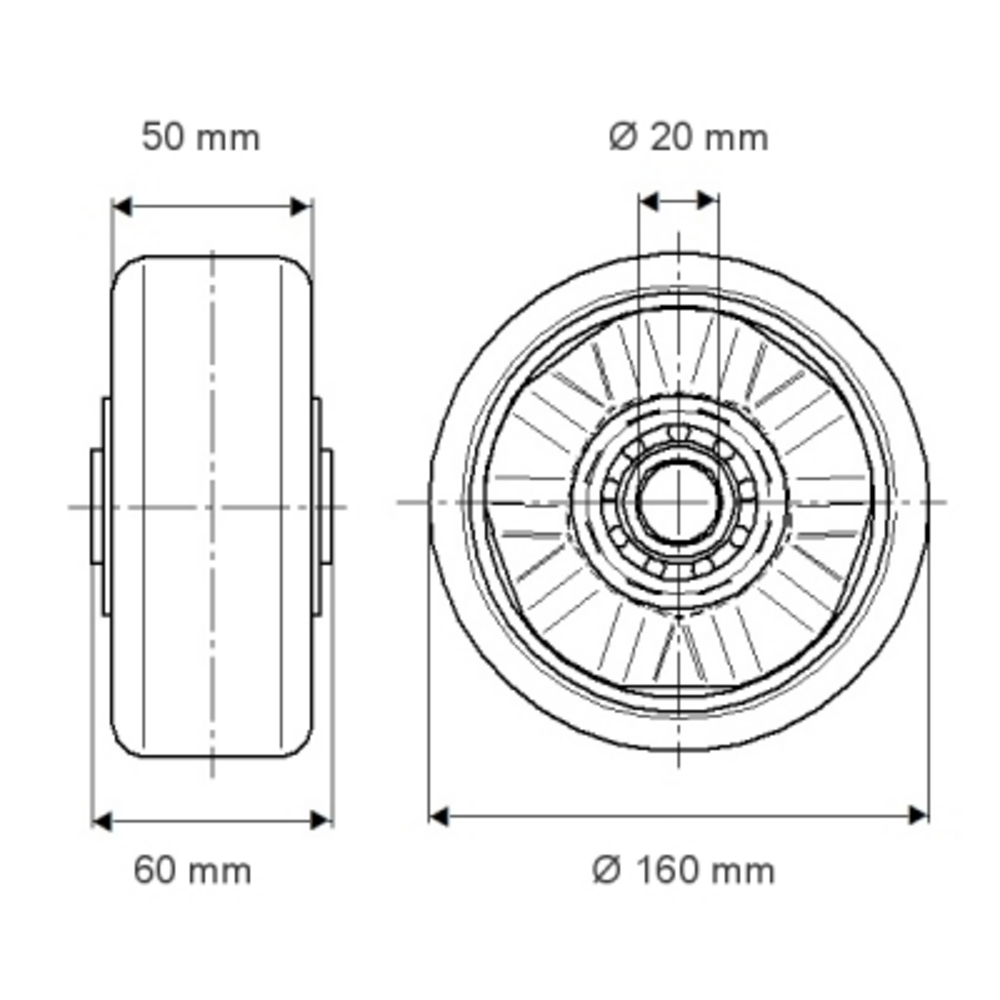

The Novatech wheel is a precision-engineered castor component featuring a 160 mm diameter with a 50 mm wide polyurethane casted tread, designed for demanding industrial applications including airport equipment, AMR systems, automated shuttle systems, automotive OEM, ceramic and glass manufacturers, container construction, fire fighting technology, forklift trucks, AGV systems, machine construction, post logistic systems, production and platform trolleys, and transport equipment. The wheel incorporates an aluminium body with a precision ball bearing and is mounted via a 20 mm axle hole diameter, with a hub length of 60 mm. Load capacity specifications include a static load rating of 1600 kg, whilst dynamic load ratings reach 640 kg at 6 km/h or 800 kg at 4 km/h, providing versatile performance across varied operational speeds and load requirements for industrial castor applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
