Wheel 160 mm
Novatech
Order number:
199861400
EAN:
4031582397918
Product number:
ITB 160x50-Ø25 HL54
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech castor wheel features an aluminium body construction with a casted polyurethane tread, measuring 160mm in diameter ...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

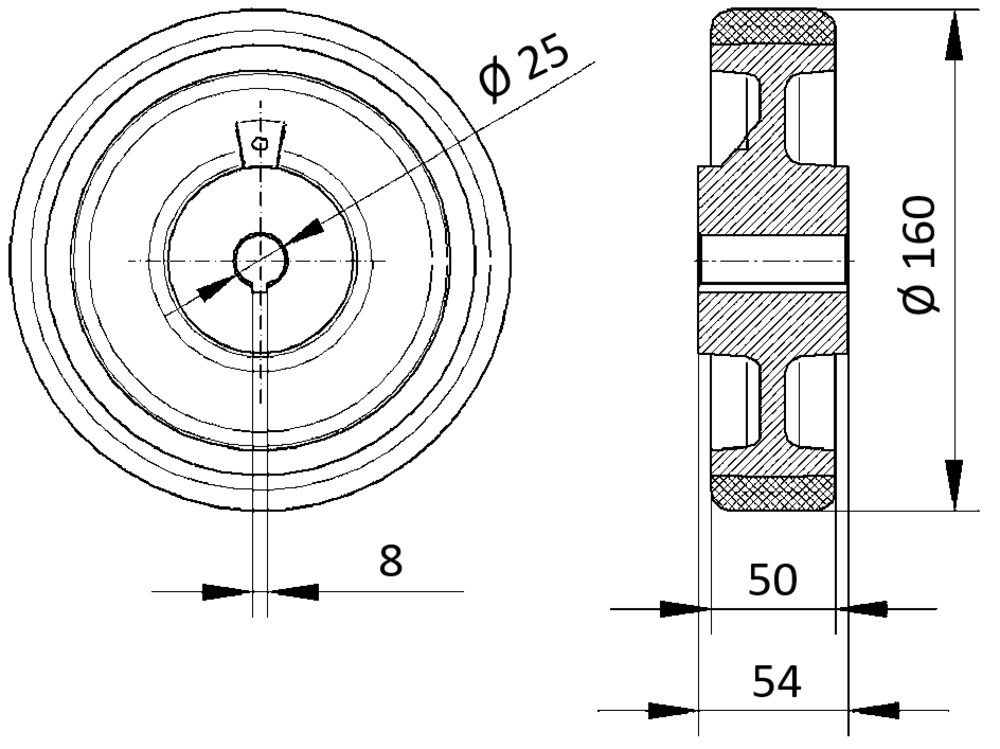

The Novatech castor wheel features an aluminium body construction with a casted polyurethane tread, measuring 160mm in diameter with a 50mm tread width and 54mm hub length. The wheel incorporates a bore with keyway bearing system and 25mm axle hole diameter. Load capacity specifications include a static rating of 1600kg, with dynamic capacities of 800kg at 4km/h and 640kg at 6km/h operating speeds, making it suitable for heavy-duty industrial applications requiring reliable performance under varying load conditions.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
