Wheel 85 mm
Novatech
Order number:
199827956
EAN:
4031582369441
Product number:
ETP 085x60-Ø20 HL60
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech Wheel is a precision castor wheel engineered for demanding industrial applications, featuring a steel and iron body...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

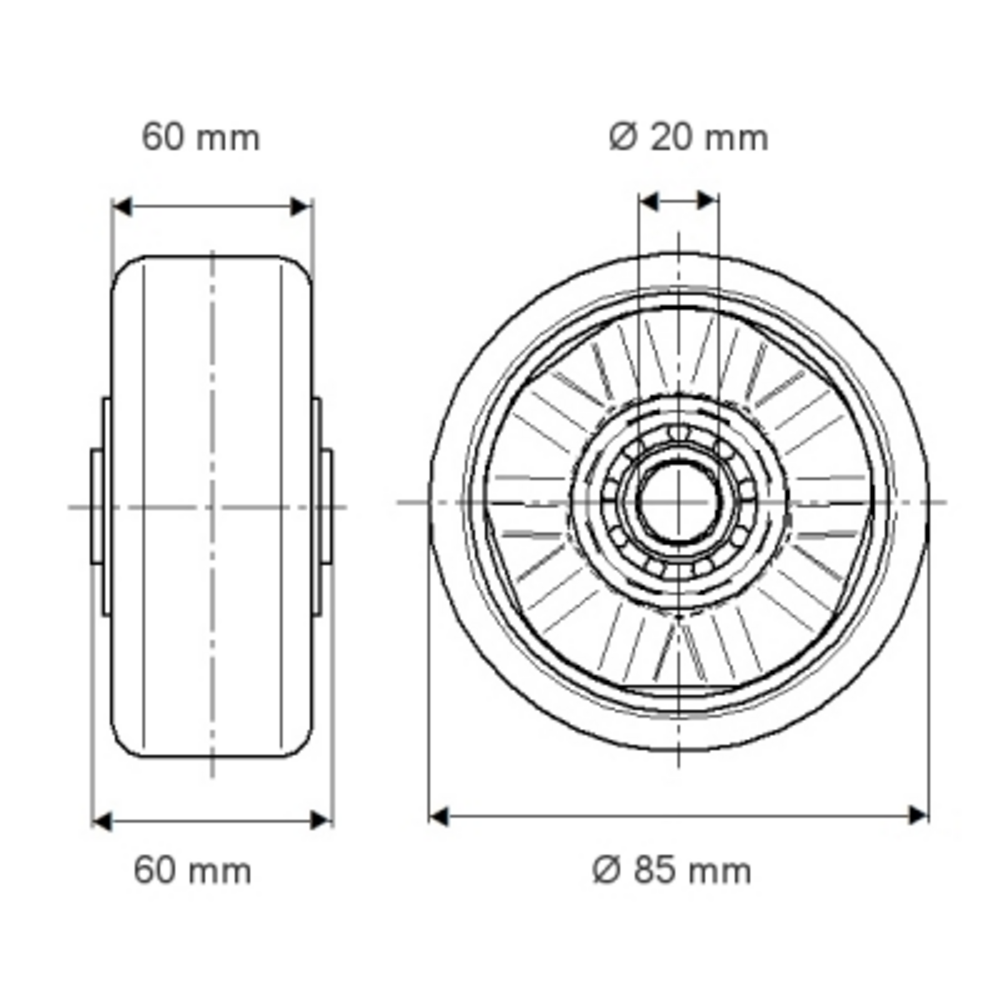

The Novatech Wheel is a precision castor wheel engineered for demanding industrial applications, featuring a steel and iron body with a diameter of 85 mm and a tread width of 60 mm constructed from cast polyurethane material. The wheel is equipped with a precision ball bearing and incorporates a hub length of 60 mm with an axle hole diameter of 20 mm, ensuring robust integration into standard castor assemblies. This wheel demonstrates exceptional load-bearing capabilities, with a static load capacity of 1200 kg, whilst the dynamic load capacity reaches 480 kg at 6 km/h or 600 kg at 4 km/h, making it suitable for both stationary and mobile applications requiring reliable performance across varied operational speeds and load conditions.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
