Wheel 160 mm
Novatech
EAN:
4031582443851
Product number:
ITB160x50-Ø20
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision-engineered castor component designed for demanding industrial applications including airport e...
Details
Custom or high volume? Request a quote now.
Data sheets
Documents
- Kappa.pdf
- electrostatic_discharge_capacity.pdf
- Solutions_for_mechanical_engineering___workshops.pdf
- Solutions_for_the_entertainment_industry.pdf
- Solutions_for_the_automotive_industry.pdf
- Solutions_for_intralogistic.pdf
- Delta.pdf
- Polyurethane_Wheels_Novatech___Ultratech.pdf
- Product_brochure_Omikron_EN__1_.pdf
- Alpha.pdf

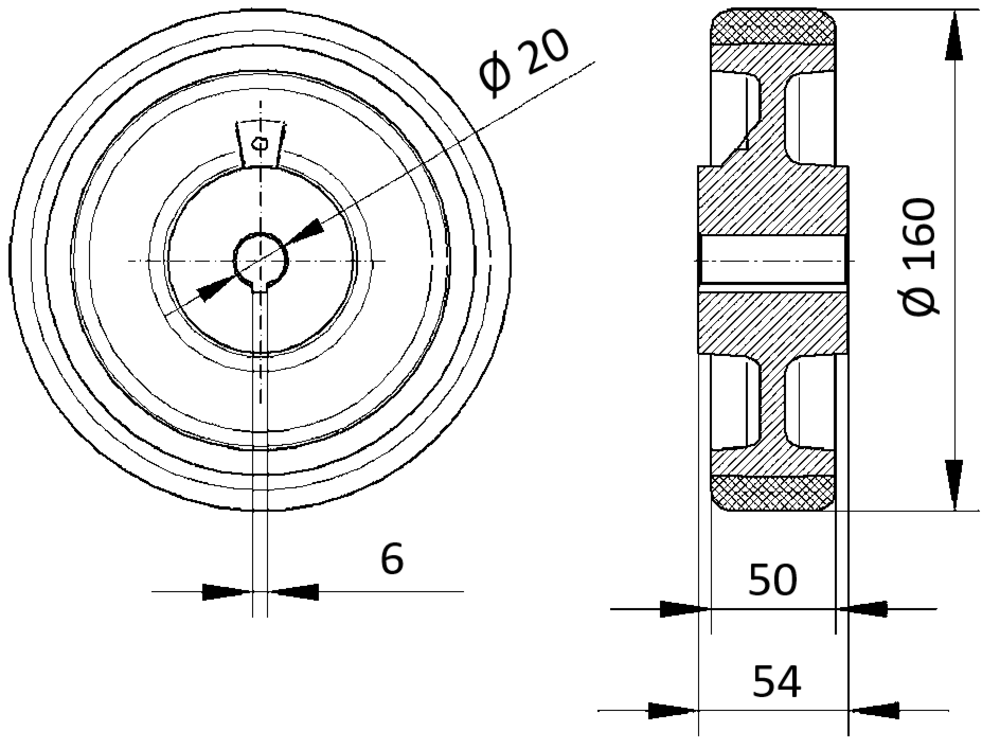

The Novatech wheel is a precision-engineered castor component designed for demanding industrial applications including airport equipment, AMR systems, automated shuttle systems, automotive OEM, ceramic and glass manufacturers, container construction, fire fighting technology, forklift trucks, AGV systems, machine construction, post logistic systems, production and platform trolleys, and transport equipment. This wheel features a 160 mm diameter with a polyurethane casted tread measuring 50 mm in width, providing excellent grip and durability across varied operational environments. The aluminium body ensures lightweight construction whilst maintaining structural integrity, complemented by a bore with keyway bearing arrangement. The hub length measures 54 mm with an axle hole diameter of 20 mm, facilitating straightforward integration into standard castor assemblies. Load capacity specifications indicate a static load rating of 1920 kg, whilst dynamic load ratings reach 800 kg at 6 km/h or 960 kg at 4 km/h, accommodating both high-speed and heavy-duty applications. These comprehensive specifications position the Novatech wheel as a versatile solution for industrial mobility requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
