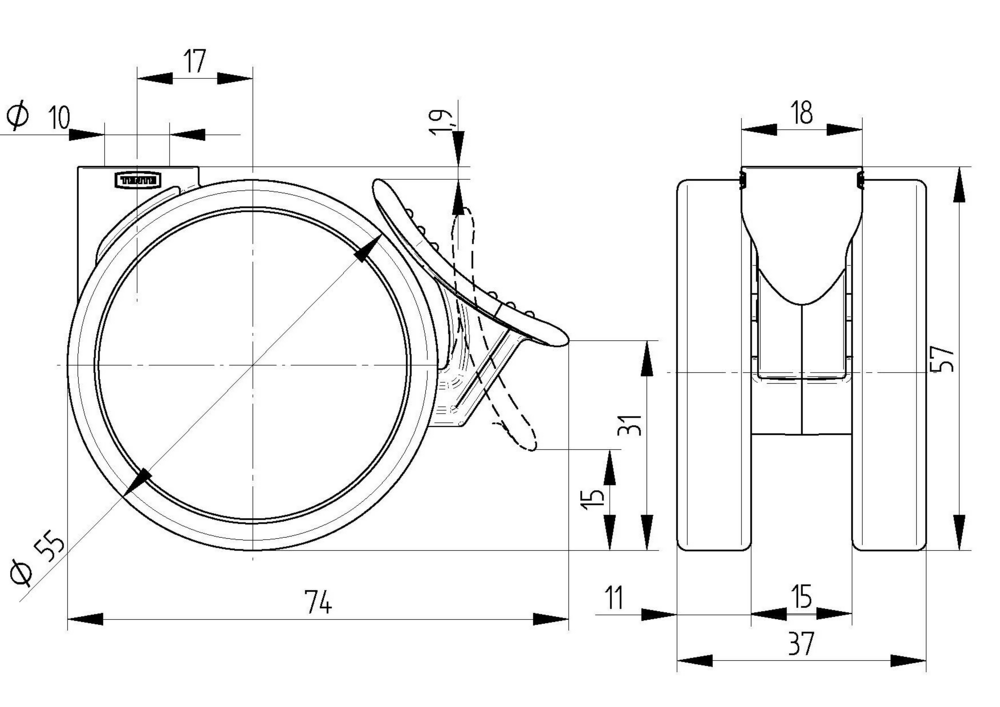

The Stylea is a swivel castor with wheel brake, suited to applications in bedside tables, furniture, media furniture and office furniture. Its fitting is a blind hole for B10, which provides a defined connection point to the furniture base. The housing is a stem, swiveling, made of polyamide, which enables the wheel assembly to swivel about its vertical axis. The wheel has a diameter of 55 mm and is mounted on a plain bearing with spacer tube, while its tread material is identical with the wheel body, which is made of polyamide. The overall height of the complete castor is 57 mm, so the unit can be integrated where clearance is limited. The static load capacity is 80 kg, while the dynamic load capacity is 40 kg at a speed of 3 km/h, and these figures should be considered when selecting the castor for a specific application.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
5925UOI055L51-10
EAN
4031582406412
Core attributes
Type
Swivel castor with wheel brake
Overall width
37 mm
Load capacity at 3 km/h
40 kg
Load capacity Static
80 kg
Overall Height
57 mm
Temperature range (Maximum)
40 °C
Temperature range (Minimum)
-10 °C
Overall weight
0.65 kg
Product Name
Stylea
Standard
EN12528 - Furniture Castors
Electric Conductive
Stainless
Fitting
Fitting type
Blind hole for B10
Bolt hole diameter
10 mm
Housing
Fork shape
Twin wheel housing
Housing Material
Polyamide
Swivel Bearing
Stem, swiveling
Dome diameter
18 mm
Swivel interference
128 mm
Swivel radius
64 mm
Wheel
Body material
Polyamide
Tread Material Mix
Identical with wheel body
Tread width
11 mm
Diameter
55 mm
Threadguards
Without threadguard
Axle
Riveted
Bearing
Plain bearing with spacer tube
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
Variable fitting options
Different fitting dimensions for a large range of applications.
Colour matching
Colours can be adapted to match the product design
Painted surface
Gold, chrome or glossy coloured.
Visual integration
Different dome diameters for a perfect transition from the castor to the application.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Reduced cleaning
Due to mainly smooth surfaces, the castors are quick and easy to clean.
