Swivel castor 150 mm

Omikron twin
Order number: 990803669
EAN: 4031582316766
Product number: 9950FTP150P65
  • Non-hazardous materials
  • Tested quality
  • Strong construction
The Omikron twin swivel castor features a medium rectangular heavy-duty plate fitting designed for demanding industrial applicat... Details
Features
  • 150 mm
  • 230 mm
  • 1800.0000 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

CAD files

Data sheets

Documents

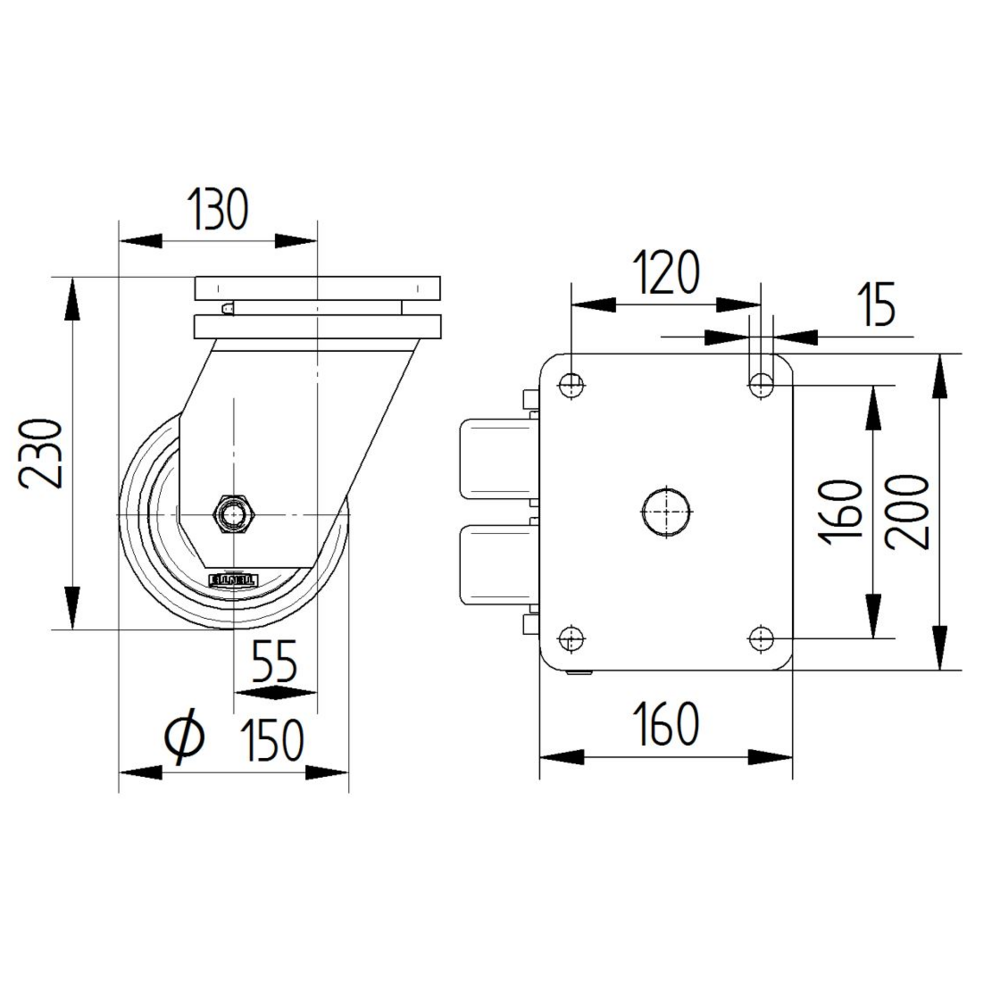

The Omikron twin swivel castor features a medium rectangular heavy-duty plate fitting designed for demanding industrial applications. The housing is constructed from iron forged, heavy material and incorporates a deep-groove ball thrust roller bearing swivel mechanism for smooth directional changes under load. The wheel assembly comprises a cast iron body with polyurethane, casted tread material, mounted on precision ball bearings for optimal performance and durability. With a wheel diameter of 150 mm, the castor has an overall height of 230 mm. Load capacity specifications include dynamic ratings of 1800 kg at 4 km/h and 1400 kg at 6 km/h, with a static load capacity of 2700 kg. This robust castor is specifically engineered for airport equipment and AGV systems where reliability and heavy-duty performance are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
9950FTP150P65
EAN
4031582316766
S4 Material Number
990803669
Core attributes
Type
Swivel castor
Overall width
189 mm
Load capacity at 4 km/h
1800 kg
Load capacity at 6 km/h
1400 kg
Load capacity Static
2700 kg
Overall height
230 mm
Temperature range (Maximum)
60 °C
Temperature range (Minimum)
-10 °C
Overall weight
17.83 kg
Product name
Omikron twin
Standard
similar EN12532 - Transport Equipment
Electric conductive
Stainless
Fitting
Fitting type
Medium rectangular heavy-duty plate
Plate hole diameter
15 mm
Plate hole length (Maximum)
120 mm
Plate hole width (Maximum)
160 mm
Plate length
200 mm
Plate width
160 mm
Housing
Colour
Transparent coating
Fork shape
Twin wheel housing
Material fork
Iron forged, heavy
Swivel bearing
Deep-groove ball thrust roller bearing
Dome diameter
160 mm
Swivel interference
282 mm
Offset
55 mm
Swivel radius
141 mm
Wheel
Hardness of tread (A)
92 Shore A
Hardness of tread (D)
42 Shore D
Body material
Cast iron
Tread material
Polyurethane, casted
Tread width
50 mm
Diameter
150 mm
Body width
50 mm
Threadguards
With threadguard
Axle
Screwed with nut
Bearing
Precision ball bearing
Wheel color
Honey yellow (RAL1005)
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Strong construction
Housing made of heavy steel for high load capacity.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Quick maintenance
Swivel bearings lubricated with long-life grease and fitted with grease nipple for easy maintenance.
Extra heavy duty construction
Welded solid steel construction for highest load capacity.
Heavy duty construction
Extra heavy steel housing for high load capacity.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Protect floors with load distribution
Two wheels distribute the load and minimise floor impressions.
