Fixed castor 200 mm

Alpha
Order number: 990000479
EAN: 4031582306354
Product number: 3478DVJ200P63
  • Non-hazardous materials
  • Tested quality
  • Uninterrupted use
The Alpha fixed castor is a robust industrial mobility solution engineered for demanding applications requiring reliable load su... Details
Features
  • 200 mm
  • 240 mm
  • 205 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now
The Alpha fixed castor is a robust industrial mobility solution engineered for demanding applications requiring reliable load support and directional stability. This castor is equipped with a medium rectangular plate fitting, which provides secure and versatile mounting options across a wide range of equipment and platforms. The housing is constructed from heavy steel sheet, ensuring exceptional durability and resistance to mechanical stress in challenging operational environments. The wheel features a 200 mm diameter design with a solid rubber tread in black, mounted on a roller bearing for smooth and consistent rotation. The roller bearing configuration minimises friction and facilitates effortless manoeuvrability whilst maintaining structural integrity under sustained use. With an overall height of 240 mm, the Alpha castor integrates seamlessly into most trolley, cart, and equipment designs without compromising accessibility or ergonomic considerations. The load capacity specifications demonstrate the castor's suitability for heavy-duty applications, with a static load capacity of 410 kg and a dynamic load capacity of 205 kg at speeds up to 4 km/h. These performance characteristics make the Alpha fixed castor an ideal choice for automotive original equipment manufacturers, catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting and fire protection equipment, machine construction, post logistic systems, production and platform trolleys, roll cages, tool cabinets, transport equipment, waste disposal equipment, and work benches. The combination of heavy-duty steel construction, reliable roller bearing technology, and substantial load-bearing capacity ensures dependable performance across diverse industrial and commercial sectors.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
3478DVJ200P63
EAN
4031582306354
S4 Material Number
990000479
Core attributes
Type
Fixed castor
Overall width
115 mm
Load capacity at 4 km/h
205 kg
Load capacity Static
410 kg
Overall Height
240 mm
Temperature range (Maximum)
85 °C
Temperature range (Minimum)
-20 °C
Overall weight
2.61 kg
Product Name
Alpha
Standard
EN12532 - Transport Equipment
Electric Conductive
Stainless
Fitting
Fitting type
Medium rectangular plate
Plate hole diameter
11 mm
Plate hole length (Maximum)
80 mm
Plate hole length (Minimum)
75 mm
Plate hole width (Maximum)
105 mm
Plate hole width (Minimum)
75 mm
Plate length
140 mm
Plate width
115 mm
Housing
Housing Color
Blue passivated
Fork shape
Broad
Housing Material
Steel sheet, heavy
Swivel Bearing
Two ball races
Wheel
Hardness of tread (A)
80 Shore A
Body material
Sheet Steel
Tread Material Mix
Solid rubber, black
Tread width
50 mm
Diameter
200 mm
Body width
50 mm
Threadguards
With threadguard
Axle
Screwed with nut
Bearing
Roller bearing
Wheel Color
Blue passivated
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Variable fitting options
Different fitting dimensions for a large range of applications.
Resource-conserving part replacement
Threaded axles allow effortless wheel change.
Uninterrupted use
Swivel bearing with dust ring for continuous, uninterrupted movement.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Skip product gallery

Matching Products

Variants

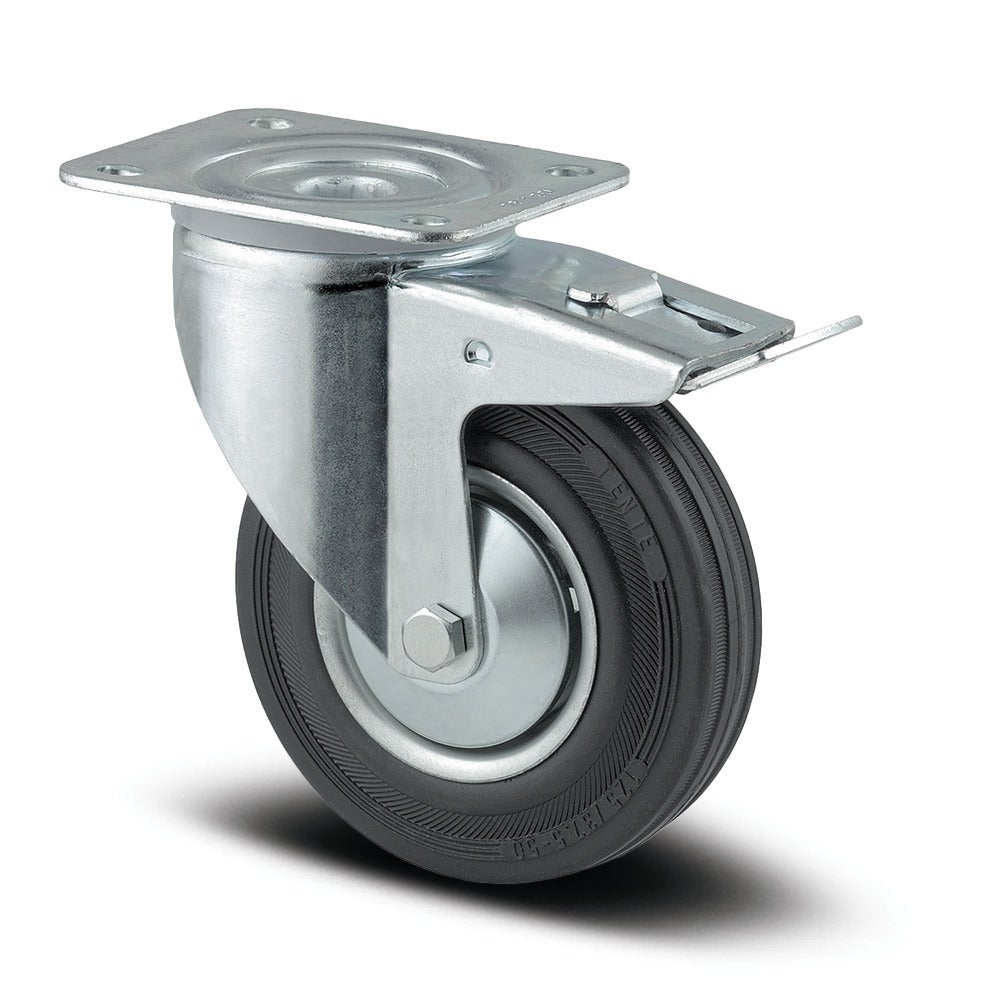

Swivel castor with total lock 200 mm
Swivel castor with total lock 200 mm
Alpha
3477DVJ200P63

The Alpha swivel castor with total lock features a medium rectangular plate fitting for secure mounting applications. The housing is constructed from heavy steel sheet and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and reliable locking functionality. The wheel assembly comprises a sheet steel body fitted with solid rubber black tread material and roller bearing for enhanced durability and reduced rolling resistance. With a wheel diameter of 200 mm, the castor provides an overall height of 240 mm. Load specifications include a dynamic capacity of 205 kg at speeds up to 4 km/h and a static load capacity of 410 kg, making it suitable for demanding industrial applications including automotive OEM, catering carts, container construction, electronic systems, machine construction, transport equipment, and various trolley systems.

200 mm
240 mm
205 kg
Details
200 mm
240 mm
205 kg
Variants

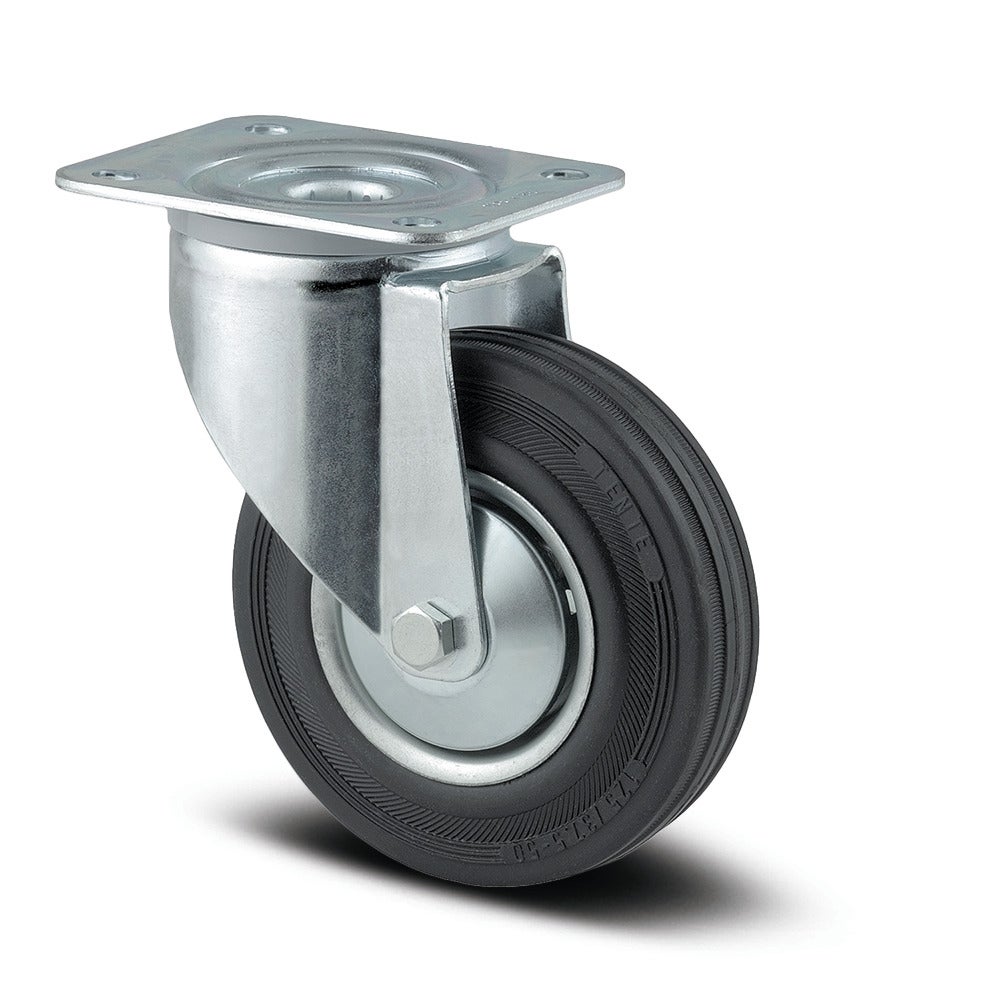

Swivel castor 200 mm
