Linea
Linea
Order number:
990034522
EAN:
4031582338898
Product number:
5940UAP150R05-32 9002
- Non-hazardous materials
- Tested quality
- Colour matching
The Linea swivel castor features a solid stem, round fitting for secure mounting applications. The housing is constructed from d...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets
Documents
- TENTE_Surgery_robots_flyer_EN.pdf
- TENTE_medical_furniture_product_brochure_EN_RZ_print.pdf
- Service_trolleys_with_Linea.pdf
- Solutions_for_the_automotive_industry.pdf
- Linea_for_furniture.pdf
- TENTE_medical_devices_product_brochure_EN_RZ_print.pdf
- Kitchen_furniture_with_Linea.pdf
- Hospital_beds_with_Linea.pdf
- Office_furniture_with_Linea.pdf
- Office_furniture_with_Linea.pdf
- Medical_chairs_with_Linea.pdf
- Linea_for_healthcare.pdf
- Solutions_for_intralogistic.pdf
- Solutions_for_commercial_kitchens_and_food_logistics.pdf
- Solutions_for_the_furniture_industry.pdf
- Solutions_for_the_furniture_industry.pdf

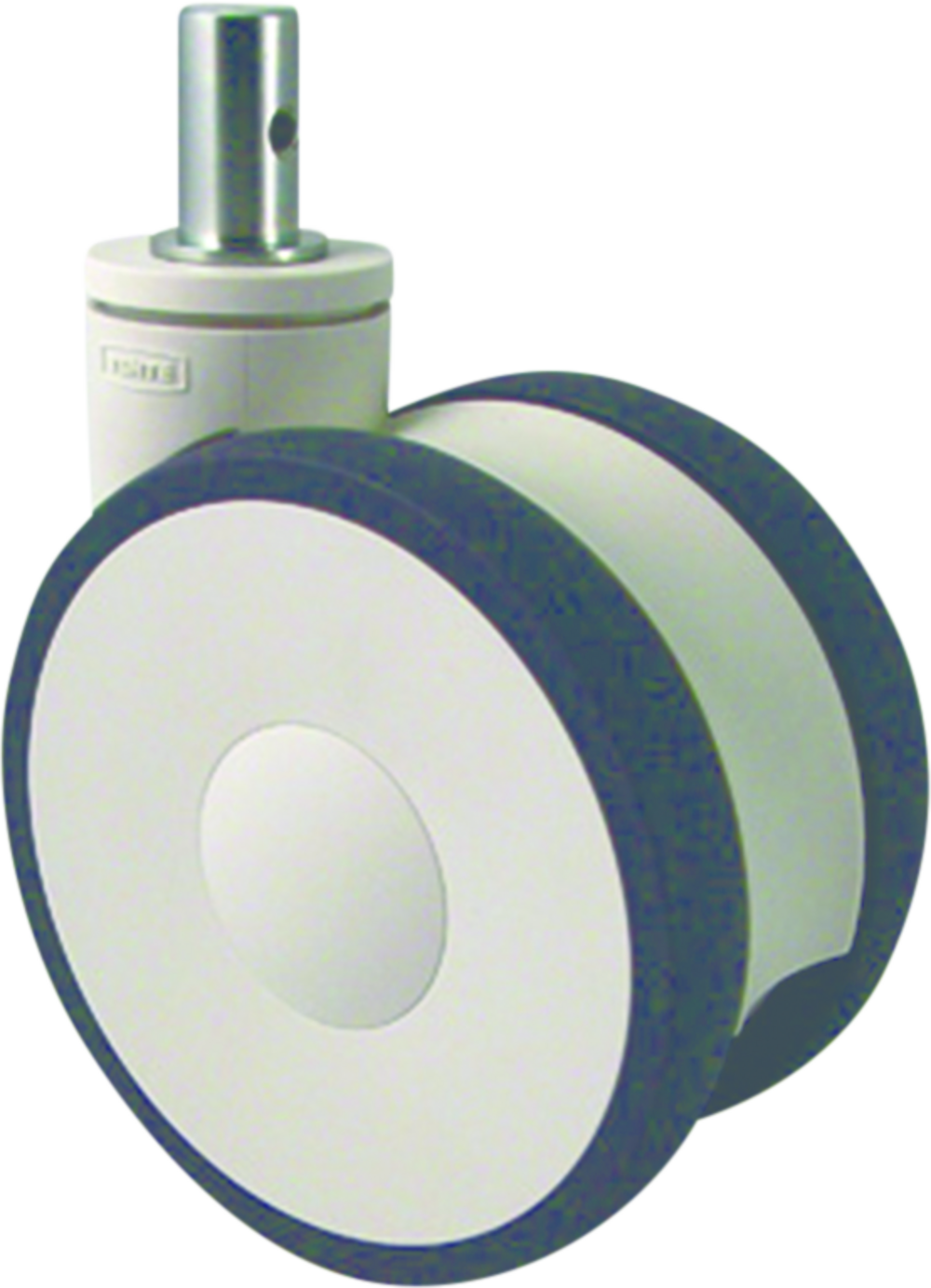

The Linea swivel castor features a solid stem, round fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a precision ball bearing swivel bearing system for smooth directional changes. The wheel assembly consists of a polyamide body with an injected polyurethane tread, supported by precision ball bearing technology for optimal rolling performance. With a wheel diameter of 150 mm, the castor provides an overall height of 155 mm. Load specifications include a dynamic capacity of 150 kg at speeds of 3 km/h and 150 kg at 4 km/h, whilst offering a static load capacity of 450 kg. This castor is specifically designed for demanding healthcare and professional environments including anesthesia carts, C-arms, CT scanners, MRI, X-ray equipment, care beds, catering carts, computers on wheels, dialysis carts, medication carts, patient lifters, surgery robots, treatment chairs, ultrasound equipment, ventilators, and professional cleaning carts across hospitals, nursing homes, and office furniture applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Deutscher Designer Club
Deutscher Designer Club
Interzum Award
Interzum Award
IF Design Award
IF Design Award
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
Painted surface
Gold, chrome or glossy coloured.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Reduced cleaning
Due to mainly smooth surfaces, the castors are quick and easy to clean.
Integrated cable protection
Integrated cable pusher to protect cables lying on the floor.
Individual branding
Engraved, casted or printed.
