Wheel 85 mm
Novatech
Order number:
199827957
EAN:
4031582318753
Product number:
ETP 085x70-Ø20 HL62
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision castor wheel engineered for demanding industrial applications, featuring a steel and iron body...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

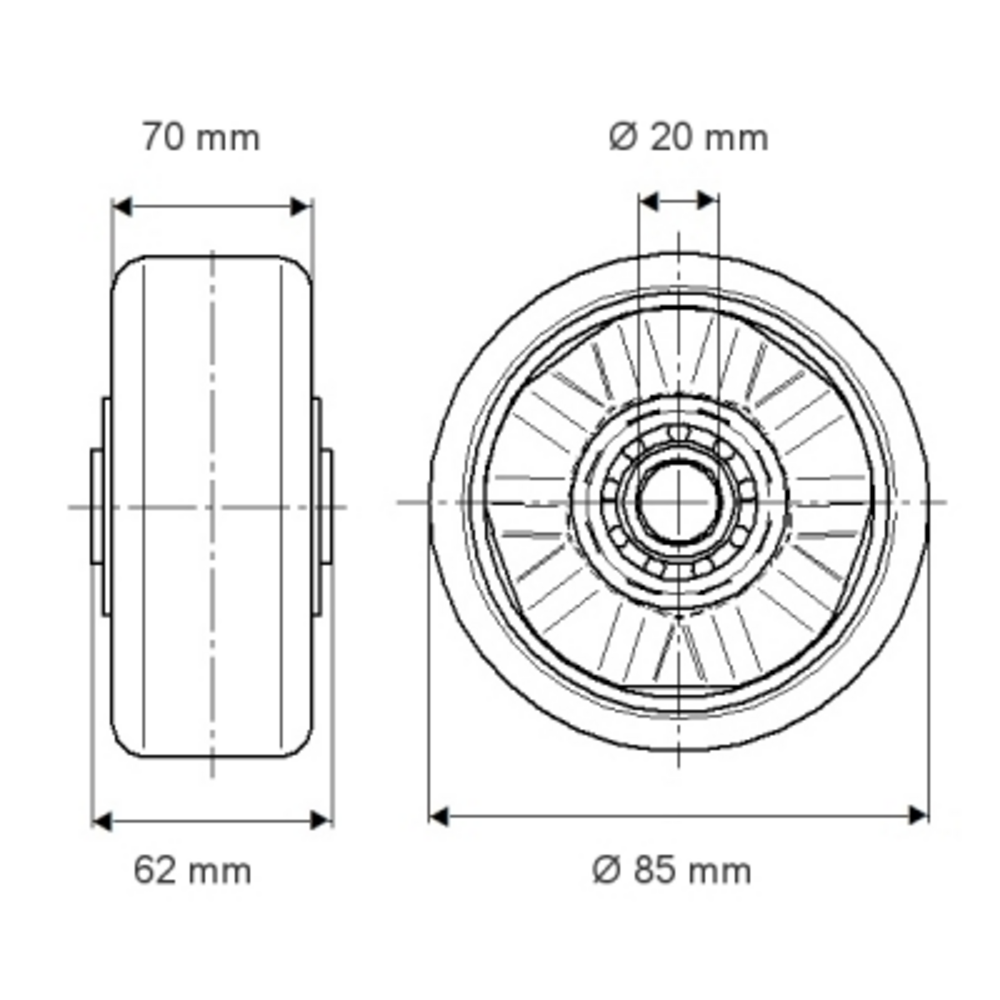

The Novatech wheel is a precision castor wheel engineered for demanding industrial applications, featuring a steel and iron body with a polyurethane, casted tread measuring 70 mm in width. The wheel has an overall diameter of 85 mm with a hub length of 62 mm and an axle hole diameter of 20 mm, accommodating standard castor fittings. Equipped with a precision ball bearing for smooth operation, this wheel delivers exceptional load-carrying capability with a static load capacity of 1400 kg. The dynamic load capacity reaches 700 kg at speeds up to 4 km/h or 560 kg at speeds up to 6 km/h, making it suitable for both heavy-duty stationary applications and mobile transport scenarios requiring reliable performance across varied operational demands.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
