Wheel 100 mm
Elastech heat
Order number:
199033962
EAN:
4031582347203
Product number:
IDG 100x35 yellow HL45,5 asm.
- Non-hazardous materials
- Tested quality
- Quiet rolling
The Elastech heat wheel is designed for castor applications, featuring an aluminium body construction with a damping, heat resis...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.

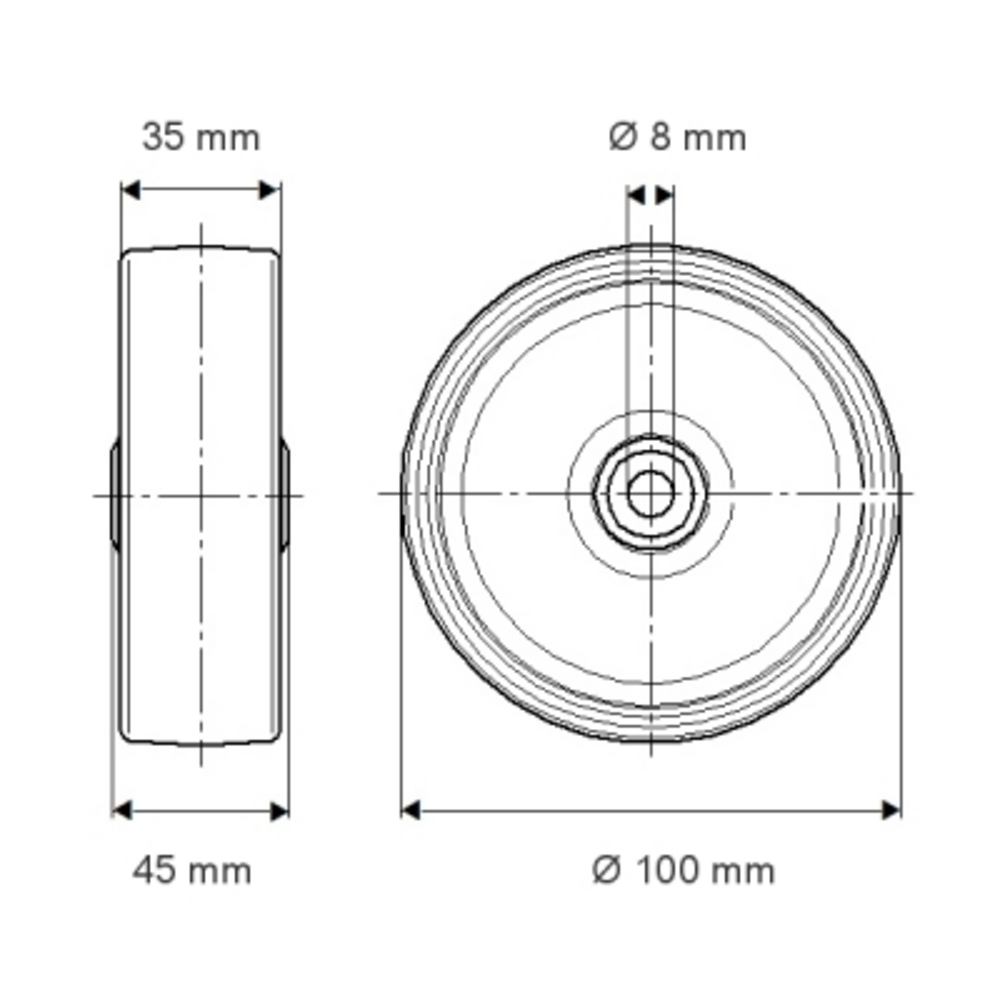

The Elastech heat wheel is designed for castor applications, featuring an aluminium body construction with a damping, heat resistant tread material. This wheel measures 100 mm in diameter with a tread width of 35 mm and incorporates a dry bearing bush system with an 8 mm axle hole diameter and 45.5 mm hub length. The wheel offers a dynamic load capacity of 80 kg at speeds up to 4 km/h and provides a static load capacity of 160 kg, making it suitable for demanding industrial applications requiring heat resistance and reliable performance.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
Constant heat resistance
Wheels made of heat resistant material for use in extreme environments.
