Wheel 125 mm
Elastech
Order number:
199829687
EAN:
4031582319699
Product number:
IEP 125x50-Ø25 HL60
- Non-hazardous materials
- Tested quality
- Quiet rolling
The Elastech castor wheel features a robust aluminium body construction with a diameter of 125 mm and an elastic tyre tread that...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

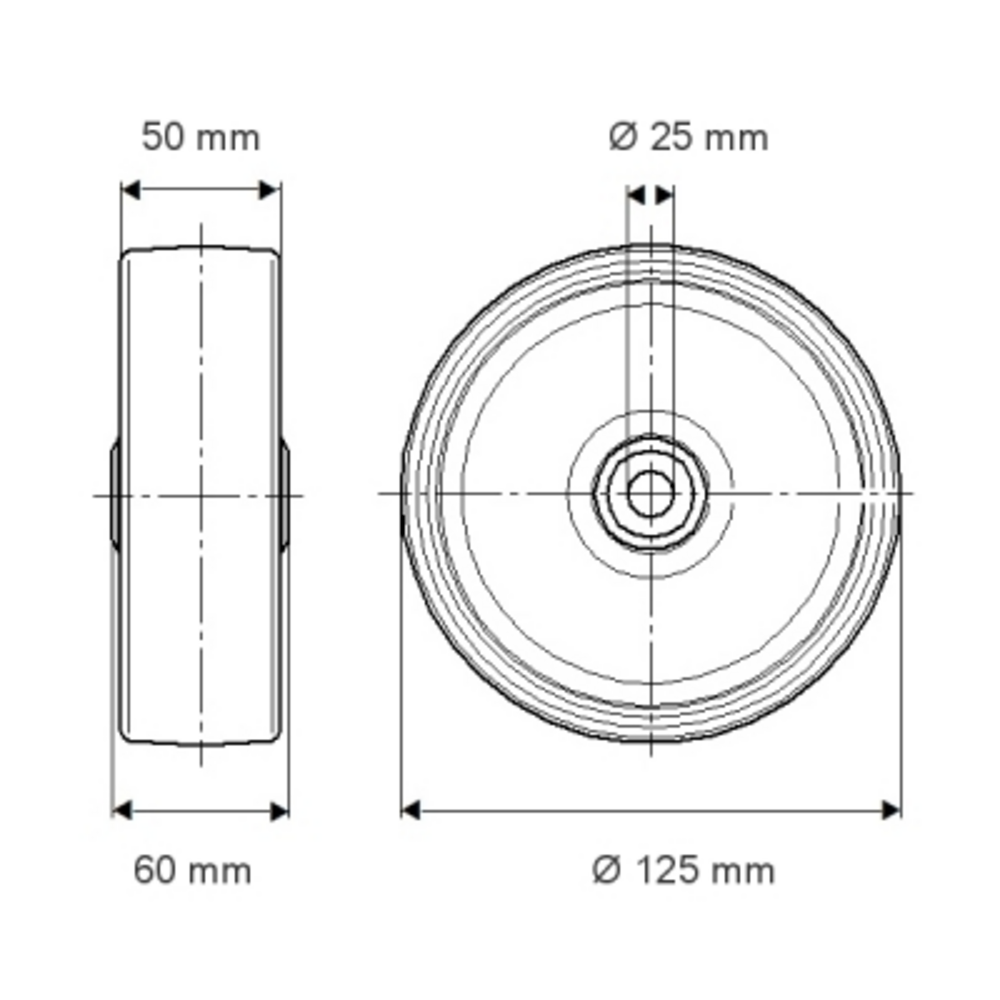

The Elastech castor wheel features a robust aluminium body construction with a diameter of 125 mm and an elastic tyre tread that is black and vulcanised, measuring 50 mm in width. The wheel incorporates a precision ball bearing system and has an axle hole diameter of 25 mm with a hub length of 60 mm. Load capacity specifications include a static load rating of 600 kg, whilst dynamic load capacity varies with operating speed: 300 kg at 4 km/h and 240 kg at 6 km/h, making it suitable for demanding industrial applications requiring reliable performance.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
