ICS
5321UAP100R05-18x62
EAN:
4031582367652
Haven’t found the right product yet, have special requirements or are you interested in individual solutions? Contact us.
Core attributes
| Applications | Medical Carts |
|---|---|
| Product name | ICS |

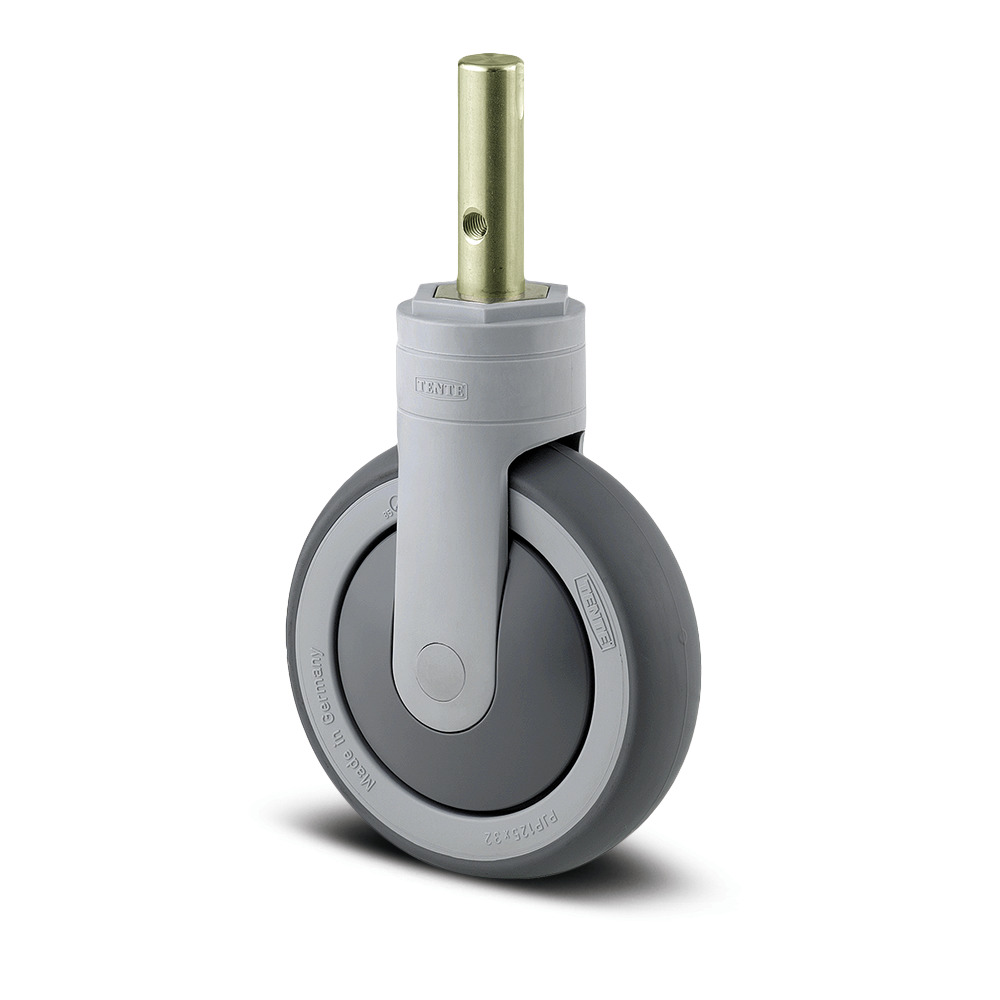

| Product type | Swivel castor with directional lock |
| Standard | EN12530 - Devices Castors |
| Load capacity at 3 km/h | 100 KG |
| Load capacity Static | 200 KG |
| Temperature range (Minimum) | -10 °C |
| Temperature range (Maximum) | 40 °C |
| Overall height | 137 mm |
| Overall weight | 0.61 KG |
Performance
| Roll performance | |
|---|---|
| Movement noise | |
| Attrition | |
| Corrosion resistance |
Housing
| Material | Polyamide |
|---|---|
| Fork shape | Slim |
| Swivel bearing | Stem, swiveling |
| Offset | 37 mm |
| Swivel Interference | 199 mm |
Wheel
| Body material | Polyamide |
|---|---|
| Tread material | Polyurethane, injected |
| Bearing | Precision ball bearing |
| Wheel diameter | 100 mm |
| Tread width | 32 mm |
| Hardness of tread (D) | 42 Shore D |
Fitting
| Fitting type | Solid stem, round |
|---|---|
| Bolt diameter | 18 mm |
| Bolt length | 62 mm |
Crossselling
Crossselling
ICS
5327UAP100R05-18x62
Swivel castor with total lock, tail end of castor, housing and wheels made from high grade synthetic materials, with integrated threadguards, all metal parts are bright zinc plated, yellow thick layer passivated, solid plug fitting. Wheel centre made of Polyamide, Tread: Polyurethane, precision ball bearing
Hint: These castors are also with grey locking lever available.
ICS
5320UAP100R05-18x62
Swivel castor, housing and wheels made from high grade synthetic materials, with integrated threadguards, all metal parts are bright zinc plated, yellow thick layer passivated, solid plug fitting. Wheel centre made of Polyamide, Tread: Polyurethane, precision ball bearing
ICS
5328UAP100R05-18x62
Fixed castor, Fork and wheels made from high grade synthetic materials, with integrated threadguards, all metal parts are bright zinc plated, yellow thick layer passivated, solid plug fitting.
Wheel centre made of Polyamide, Tread: Polyurethane, precision ball bearing
