Wheel 85 mm
Duratech
Order number:
199832615
EAN:
4031582331219
Product number:
TOP 085x85-Ø20 HL85
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Duratech wheel is constructed from polyamide, heavy material with a diameter of 85 mm and tread width of 85 mm, featuring a ...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

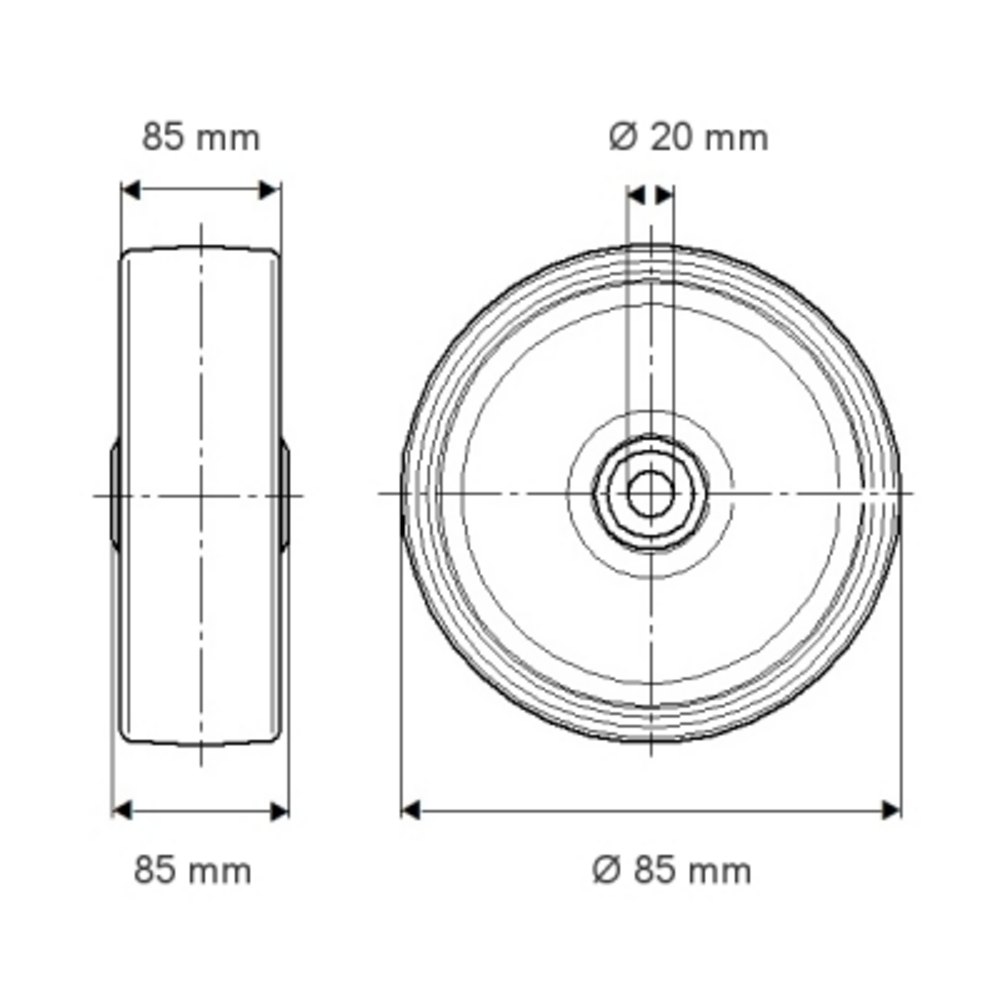

The Duratech wheel is constructed from polyamide, heavy material with a diameter of 85 mm and tread width of 85 mm, featuring a precision ball bearing system and 20 mm axle hole diameter with hub length of 85 mm. The wheel's tread material is identical with wheel body construction for consistent performance characteristics. Load capacity specifications include a static load rating of 1600 kg, whilst dynamic load capacity varies with operating speed: 800 kg at 4 km/h and 640 kg at 6 km/h, making it suitable for heavy-duty castor applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
