Wheel 85 mm
Duratech
Order number:
199832614
EAN:
4031582331202
Product number:
TOP 085x80-Ø20 HL80
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Duratech wheel is engineered with a heavy polyamide body and matching tread material, featuring a diameter of 85 mm and trea...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

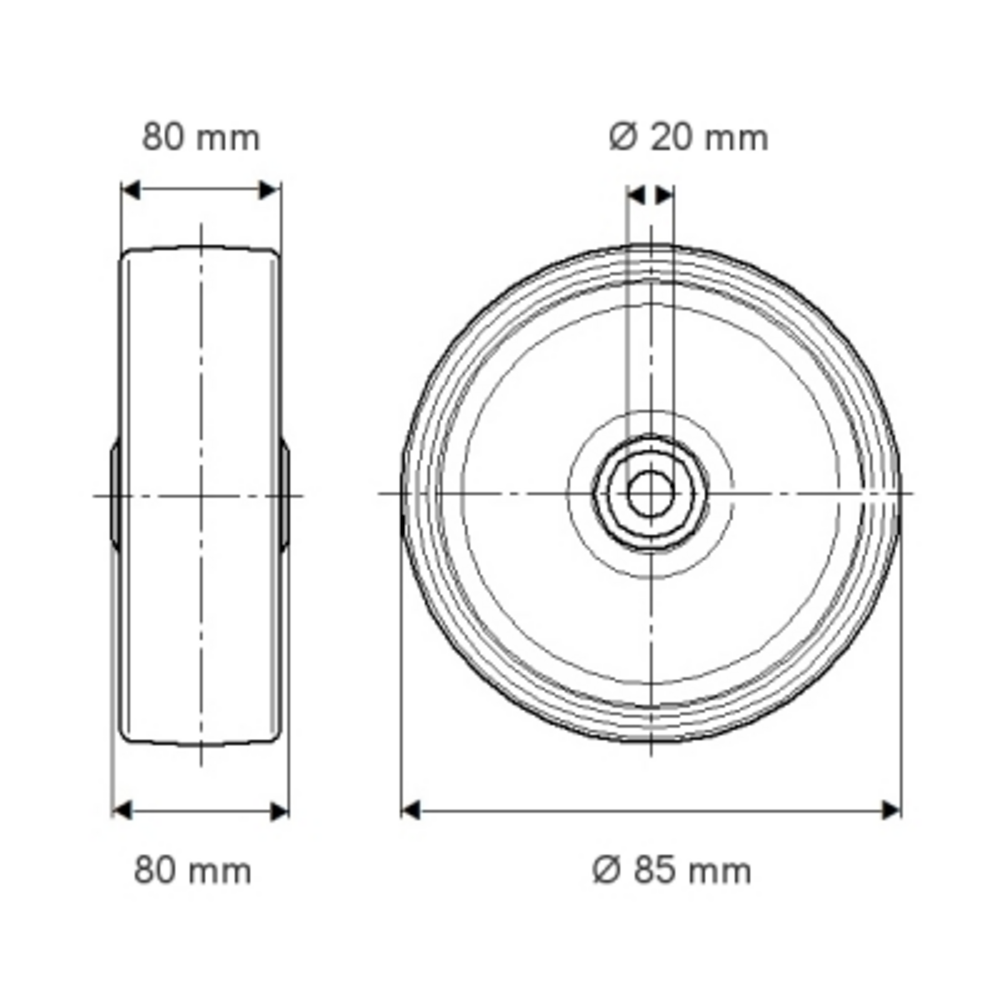

The Duratech wheel is engineered with a heavy polyamide body and matching tread material, featuring a diameter of 85 mm and tread width of 80 mm. The wheel incorporates a precision ball bearing system with a 20 mm axle hole diameter and 80 mm hub length. Load capacity specifications include a static rating of 1500 kg, whilst dynamic capacity reaches 750 kg at speeds up to 4 km/h and 600 kg at speeds up to 6 km/h, making it suitable for demanding industrial castor applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
