Wheel 85 mm
Duratech
Order number:
199832613
EAN:
4031582331196
Product number:
TOP 085x75-Ø20 HL75
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Duratech wheel is engineered with a heavy polyamide body construction and features a tread made from identical material to t...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

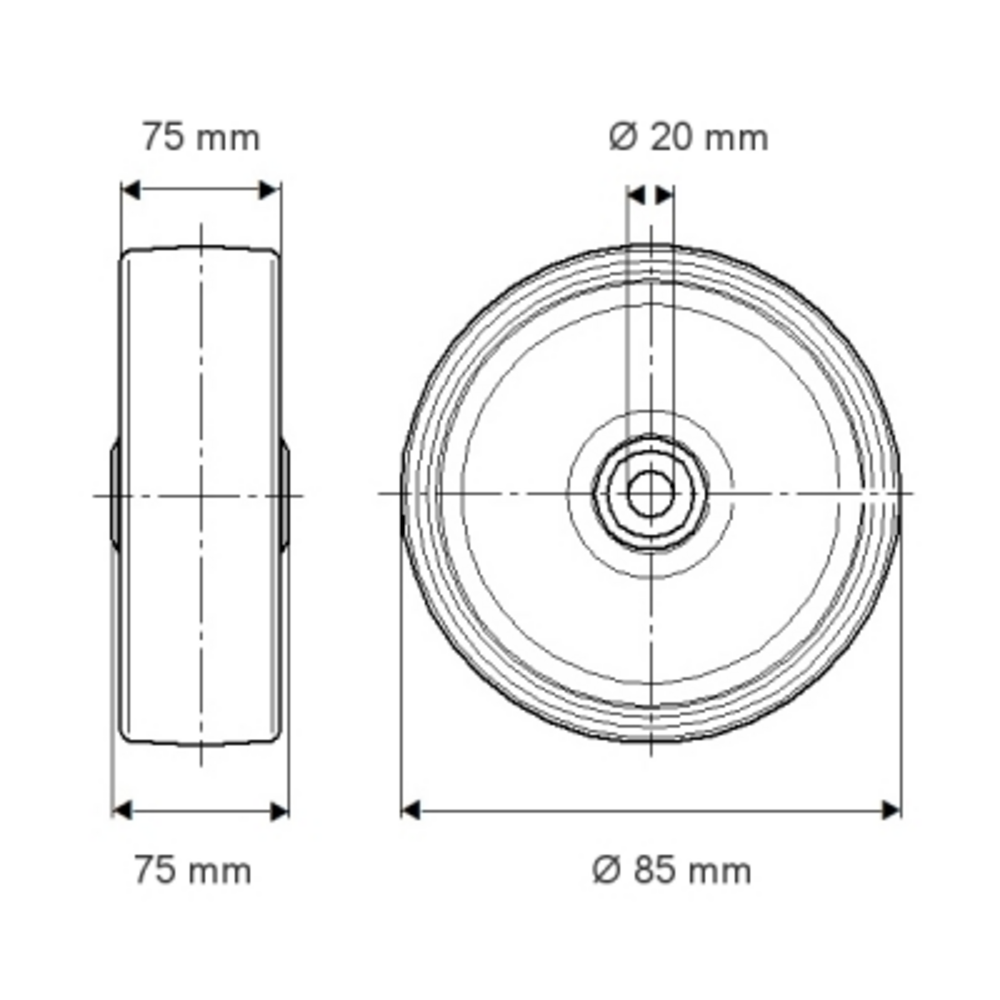

The Duratech wheel is engineered with a heavy polyamide body construction and features a tread made from identical material to the wheel body, providing consistent performance characteristics throughout. This precision-engineered wheel measures 85mm in diameter with a tread width of 75mm and incorporates a 20mm axle hole diameter, whilst the hub extends to a length of 75mm for optimal load distribution. The wheel is equipped with precision ball bearings to ensure smooth operation and reduced friction during use. Load capacity specifications include a static load rating of 1500kg and dynamic load capacities of 750kg at speeds up to 4km/h and 600kg at speeds up to 6km/h, making it suitable for demanding industrial castor applications requiring reliable performance under varying operational conditions.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
