Wheel 85 mm
Duratech
Order number:
199832611
EAN:
4031582331172
Product number:
TOP 085x65-Ø20 HL65
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Duratech wheel features a robust polyamide, heavy body construction with an 85 mm diameter and 65 mm tread width, incorporat...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

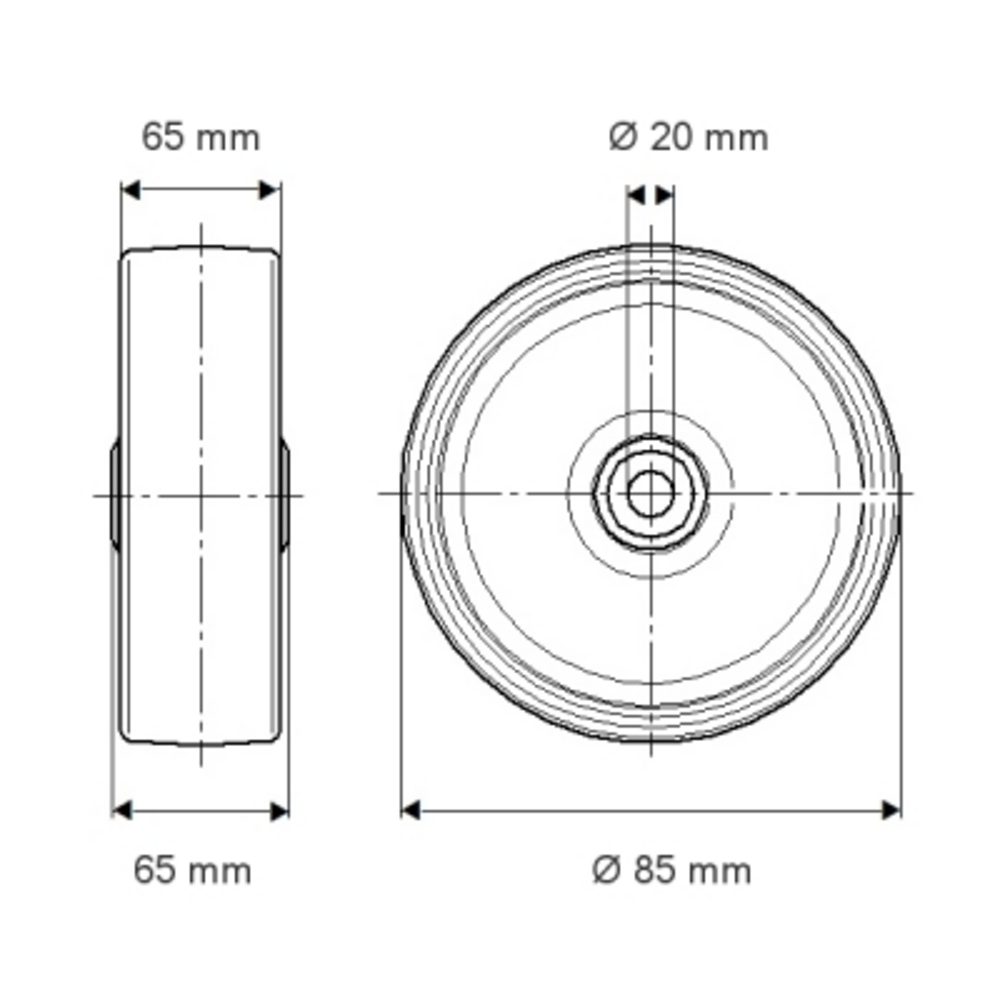

The Duratech wheel features a robust polyamide, heavy body construction with an 85 mm diameter and 65 mm tread width, incorporating a precision ball bearing system and 20 mm axle hole diameter with 65 mm hub length. The tread material is identical with the wheel body, ensuring consistent performance characteristics. Load capacity specifications include a static rating of 1300 kg, whilst dynamic capacity varies with operational speed: 650 kg at 4 km/h and 520 kg at 6 km/h, making it suitable for demanding industrial castor applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
