Wheel 82 mm
Duratech
Order number:
199827823
EAN:
4031582331042
Product number:
TOP 082x66-Ø20 HL66
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Duratech wheel is a precision castor component manufactured from heavy-duty polyamide with a tread material identical with w...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

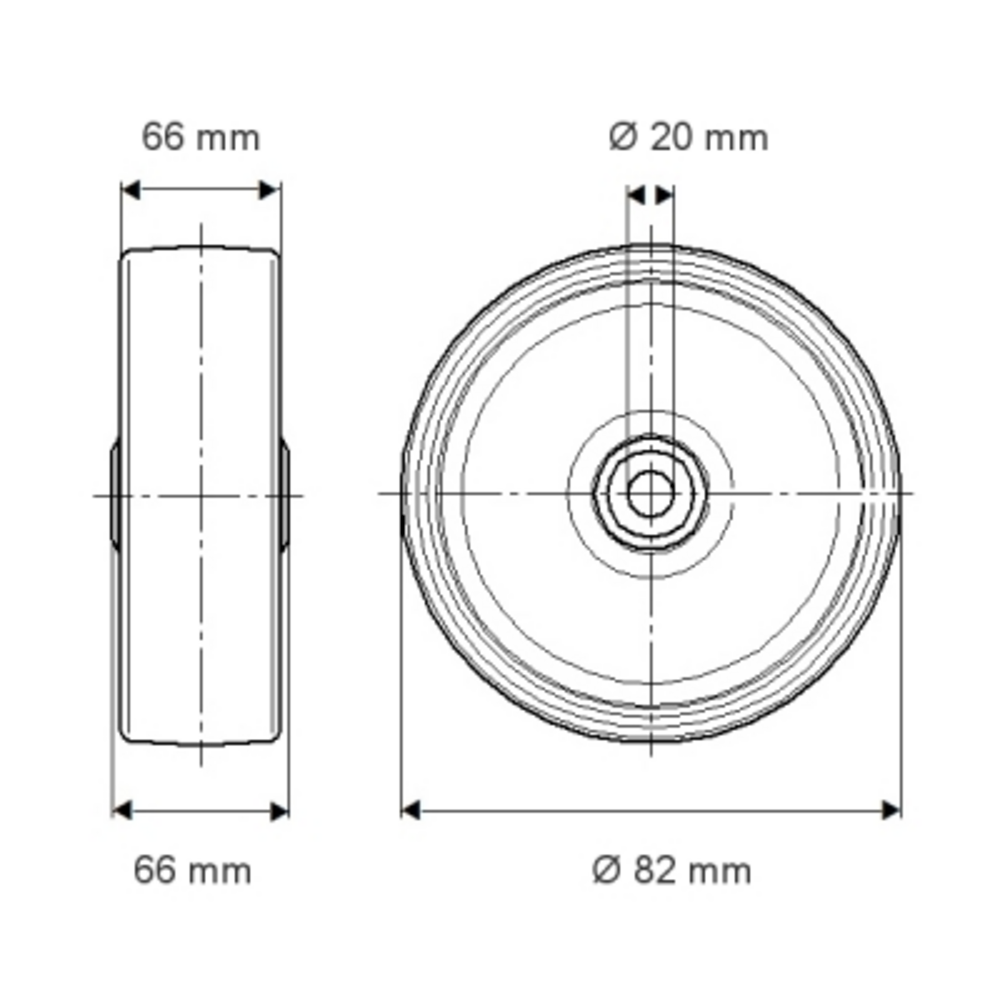

The Duratech wheel is a precision castor component manufactured from heavy-duty polyamide with a tread material identical with wheel body, featuring a diameter of 82 mm and a tread width of 66 mm. The hub length measures 66 mm with an axle hole diameter of 20 mm, accommodating a precision ball bearing for smooth rotation. This wheel is engineered to support a static load capacity of 1300 kg, whilst the dynamic load capacity reaches 520 kg at 6 km/h or 650 kg at 4 km/h, making it suitable for demanding industrial and commercial castor applications requiring reliable performance under substantial weight.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
