Swivel castor with central, total lock 200 mm
Alpha central
EAN:
4031582304992
Product number:
3476PXU200P69 L0-11
- Non-hazardous materials
- Tested quality
- User-friendly central lock
The Alpha central is a swivel castor with central, total lock featuring a rectangular plate with central locking function for se...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Documents

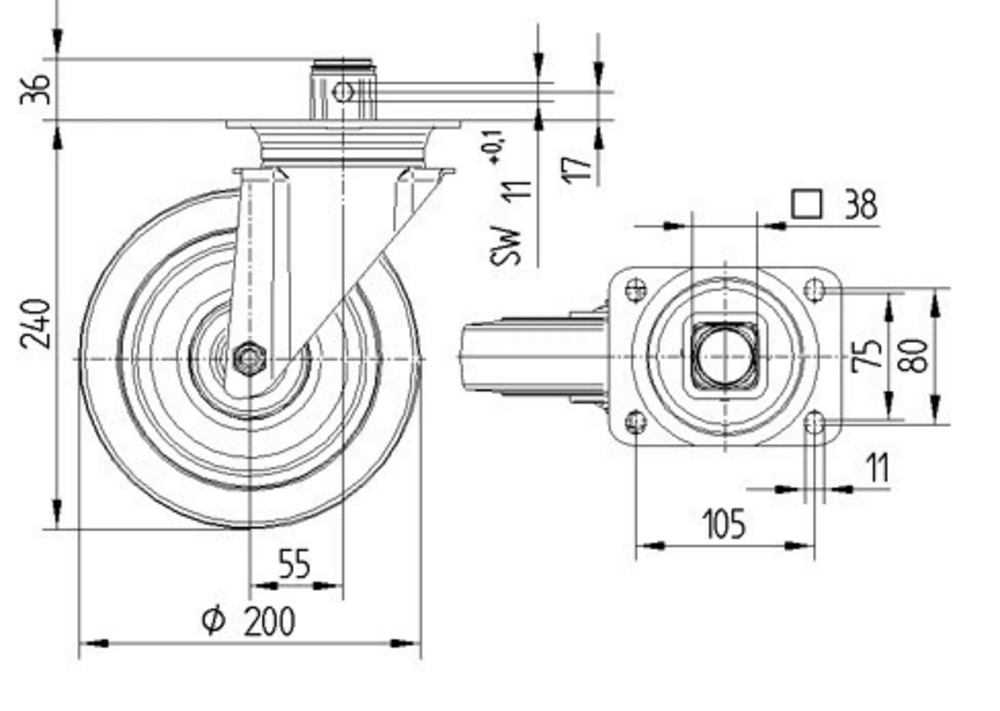

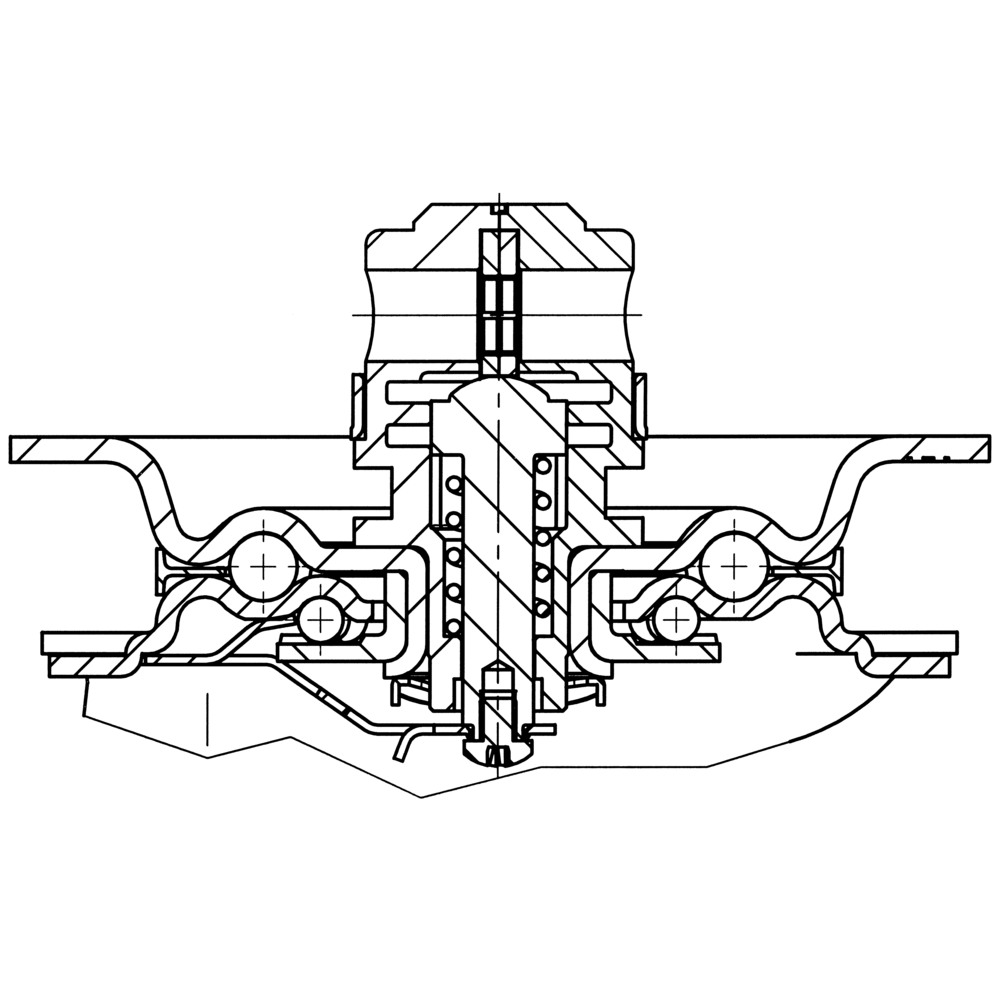

The Alpha central is a swivel castor with central, total lock featuring a rectangular plate with central locking function for secure mounting and operational control. The housing is constructed from heavy steel sheet and incorporates two ball races for the swivel bearing mechanism, ensuring smooth rotational movement and enhanced durability under demanding conditions. The wheel comprises a polypropylene body fitted with polyurethane, biosourced, injected, electric-conductive tread material, mounted on a plain bearing with synthetic spacer tube for reliable performance. The wheel diameter measures 200mm with an overall height of 240mm. Load capacity specifications include a dynamic rating of 205kg at 4km/h operating speed and a static load capacity of 410kg, making it suitable for automotive OEM, container construction, electronic systems, clean-room technology, fire fighting technology, machine construction, post logistic systems, production and platform trolleys, roll cages, tool cabinets, waste disposal equipment, work benches, and transport equipment applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Prevents unintended movement
Wheel lock for manual operation
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Easy steering
Double ball bearing swivel head.
