Swivel castor with wheel brake 50 mm

Mono

EAN: 4031582364606

Product number: A025PJI050L51-10 chrome

Non-hazardous materials
Tested quality
Colour matching

The Mono is a swivel castor with wheel brake designed for versatile mobility applications. The castor features a blind hole fitt... Details

Custom or high volume? Request a quote now.

CAD files

Data sheets

Documents

Solutions_for_the_cleaning_industry.pdf

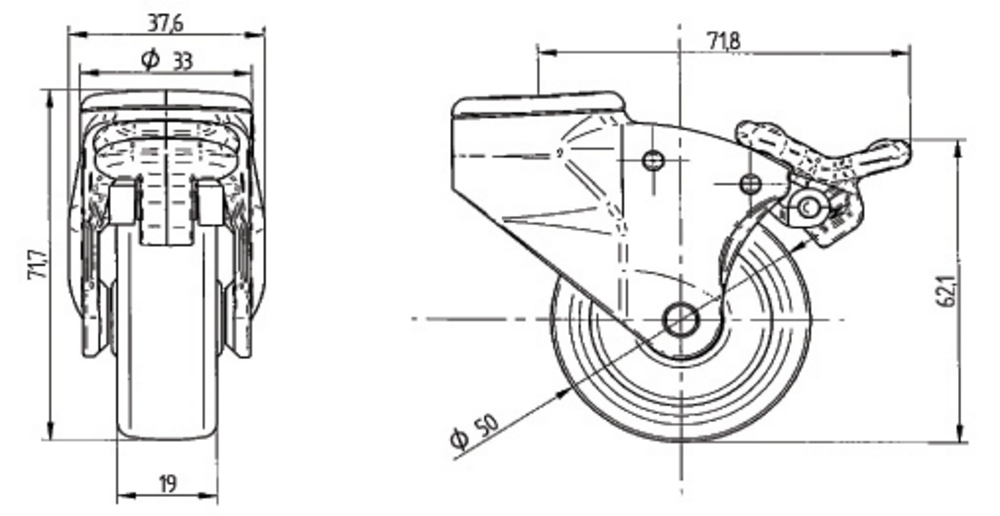

The Mono is a swivel castor with wheel brake designed for versatile mobility applications. The castor features a blind hole fitting compatible with B10 mounting systems, ensuring secure installation in various configurations. The housing is constructed from durable polypropylene material and incorporates a stem swiveling bearing mechanism that provides smooth 360-degree rotation for enhanced manoeuvrability. The wheel assembly comprises a polypropylene body fitted with a thermoplastic rubber tread, delivering excellent grip and floor protection. The wheel operates on a plain bearing system with spacer tube for reliable performance and has a diameter of 50mm. The castor has an overall height of 72mm, making it suitable for compact applications. Load specifications include a dynamic capacity of 30kg at speeds up to 3km/h and a static load capacity of 60kg, providing reliable performance across diverse operational requirements.

Roll performance

Movement noise

Attrition

Corrosion resistance

Article numbers

Article Number

A025PJI050L51-10 chrome

EAN

4031582364606

Core attributes

Type

Swivel castor with wheel brake

Load capacity at 3 km/h

30 kg

Load capacity Static

60 kg

Overall height

72 mm

Temperature range (Maximum)

60 °C

Temperature range (Minimum)

-20 °C

Overall weight

0.78 kg

Product name

Mono

Standard

EN12528 - Furniture Castors

Electric conductive

Stainless

Fitting

Fitting type

Blind hole for B10

Bolt hole diameter

10 mm

Housing

Fork shape

Closed

Material fork

Polypropylene

Swivel bearing

Stem, swiveling

Swivel interference

143.6 mm

Offset

25 mm

Swivel radius

71.8 mm

Wheel

Hardness of tread (A)

85 Shore A

Body material

Polypropylene

Tread material

Thermoplastic rubber

Tread width

18 mm

Diameter

50 mm

Threadguards

Without threadguard

Bearing

Plain bearing with spacer tube

Special Features

Non-hazardous materials

Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).

Tested quality

Tested in our own laboratory for compliance with European standards.

Prevents unintended movement

Wheel lock for manual operation

Variable fitting options

Different fitting dimensions for a large range of applications.

Colour matching

Colours can be adapted to match the product design

Painted surface

Gold, chrome or glossy coloured.

Non-marking movement

Wheels with reduced abrasion and little cleaning requirement.

Chemical-resistant components

Insensitive to many cleaning agents and chemical substances.
