Puretech
PVR 300x50-Ø20 HL58
EAN:
4031582321357
Product number:
00038262
Haven’t found the right product yet, have special requirements or are you interested in individual solutions? Contact us.
Downloads
Datasheet
CAD Service
There are currently no files available for this product
Core attributes
| Applications | Industrial Consumer |
|---|---|
| Product name | Puretech |
| Load capacity at 4 km/h | 250 KG |
| Load capacity Static | 500 KG |
| Temperature range (Minimum) | -20 °C |
| Temperature range (Maximum) | 60 °C |
| Overall weight | 2.82 KG |
Performance
| Roll performance | |
|---|---|
| Movement noise | |
| Attrition | |
| Corrosion resistance |

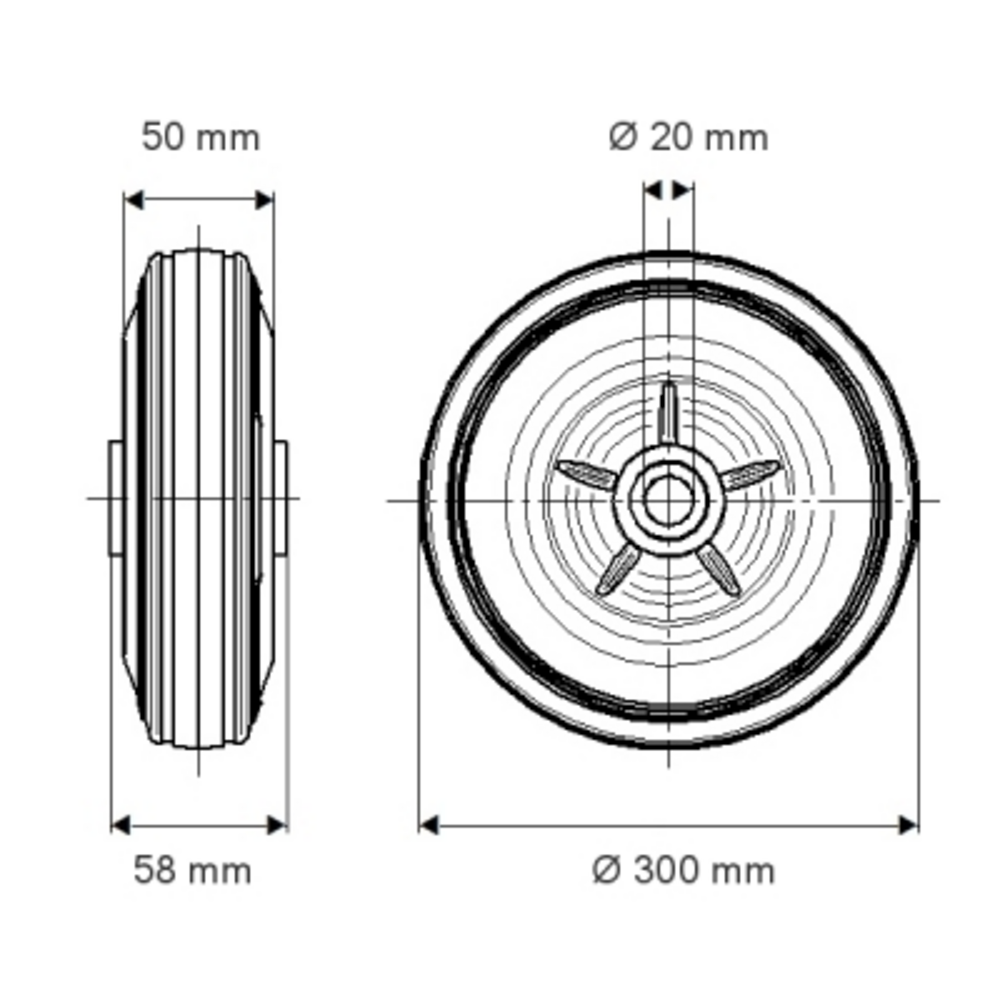

Wheel
| Body material | Polypropylene |
|---|---|
| Tread material | Solid rubber, black |
| Bearing | Roller bearing |
| Wheel color | Graphite black (RAL9011) |
| Wheel diameter | 300 mm |
| Tread width | 50 mm |
| Axle hole diameter | 20 mm |
| Hub length | 58 mm |
| Wheel width | 50 mm |
| Hardness of tread (A) | 80 Shore A |
