Swivel castor 100 mm
Alpha stainless
EAN:
4031582377163
Product number:
8470UOD100P30-11
- Non-hazardous materials
- Tested quality
- Uninterrupted use
The Alpha stainless swivel castor has a bolt hole fitting with a housing made of heavy stainless steel containing two ball races...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets
Documents

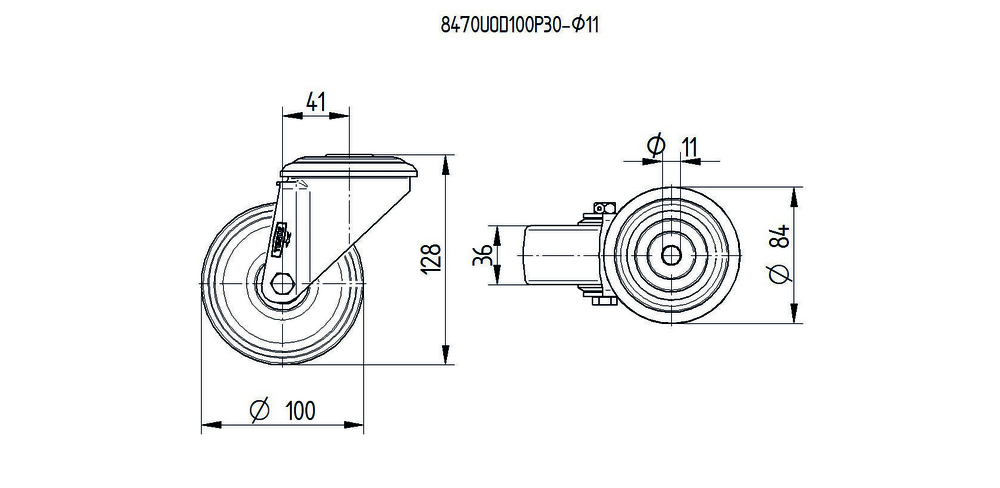

The Alpha stainless swivel castor has a bolt hole fitting with a housing made of heavy stainless steel containing two ball races for the swivel bearing. The wheel body is made of polyamide with an identical polyamide tread material. The wheel uses a stainless roller bearing and has a diameter of 100 mm. The overall height of the castor is 128 mm. At 4 km/h, the castor has a load capacity of 150 kg and a static load capacity of 300 kg.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Variable fitting options
Different fitting dimensions for a large range of applications.
Resource-conserving part replacement
Threaded axles allow effortless wheel change.
Uninterrupted use
Swivel bearing with dust ring for continuous, uninterrupted movement.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
Easy steering
Double ball bearing swivel head.
Permanent washability
All metal components made of stainless steel.
Low maintenance materials
All metal components made of Aluminum or rust-free stainless steel.
Skip product gallery
Crossselling
Variants
Swivel castor with total lock 100 mm
Alpha stainless
8477UOD100P30-11
The Alpha stainless swivel castor with total lock and bolt hole fitting has a housing made of stainless steel (heavy). It features a two ball races swivel bearing and a polyamide wheel body with an identical polyamide tread material. The wheel uses a stainless roller bearing and has a diameter of 100 mm. The overall height of the castor is 128 mm. At 4 km/h, the swivel castor has a load capacity of 150 kg. Under static load conditions, the load capacity is 300 kg.
100
mm
Medium Duty | 150 - 500 kg
128
mm
100
mm
Medium Duty | 150 - 500 kg
128
mm
