Swivel castor with total lock 125 mm
Alpha stainless
Order number:
990062228
EAN:
4031582377217
Product number:
8477UOD125P30-11
- Non-hazardous materials
- Tested quality
- Uninterrupted use
The Alpha stainless is a swivel castor with total lock designed for demanding industrial applications. The castor features a bol...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets
Documents

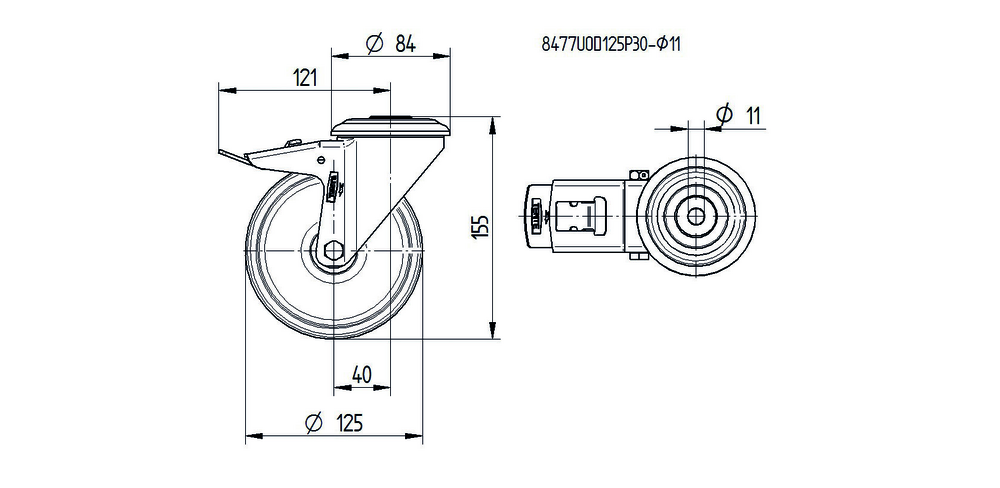

The Alpha stainless is a swivel castor with total lock designed for demanding industrial applications. The castor features a bolt hole fitting for secure mounting to equipment and structures. The housing is constructed from heavy stainless steel and incorporates two ball races for the swivel bearing mechanism, ensuring smooth rotation and exceptional durability in harsh environments. The wheel comprises a polyamide body with tread material identical to the wheel body, providing excellent wear resistance and chemical compatibility, whilst the roller bearing is manufactured from stainless steel for corrosion resistance and long service life. The wheel diameter measures 125mm and the overall height of the complete assembly is 155mm. Load specifications include a dynamic load capacity of 200kg at speeds up to 4km/h and a static load capacity of 400kg, making it suitable for catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing.
Variable fitting options
Different fitting dimensions for a large range of applications.
Resource-conserving part replacement
Threaded axles allow effortless wheel change.
Uninterrupted use
Swivel bearing with dust ring for continuous, uninterrupted movement.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
Easy steering
Double ball bearing swivel head.
Permanent washability
All metal components made of stainless steel.
Low maintenance materials
All metal components made of Aluminum or rust-free stainless steel.
