Wheel 100 mm

Elastech
EAN: 4031582422269
Product number: UFC100X34@08X45
  • Non-hazardous materials
  • Tested quality
  • Non-marking movement
The Elastech wheel is a precision castor component engineered for demanding industrial applications, featuring a polyamide body ... Details
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

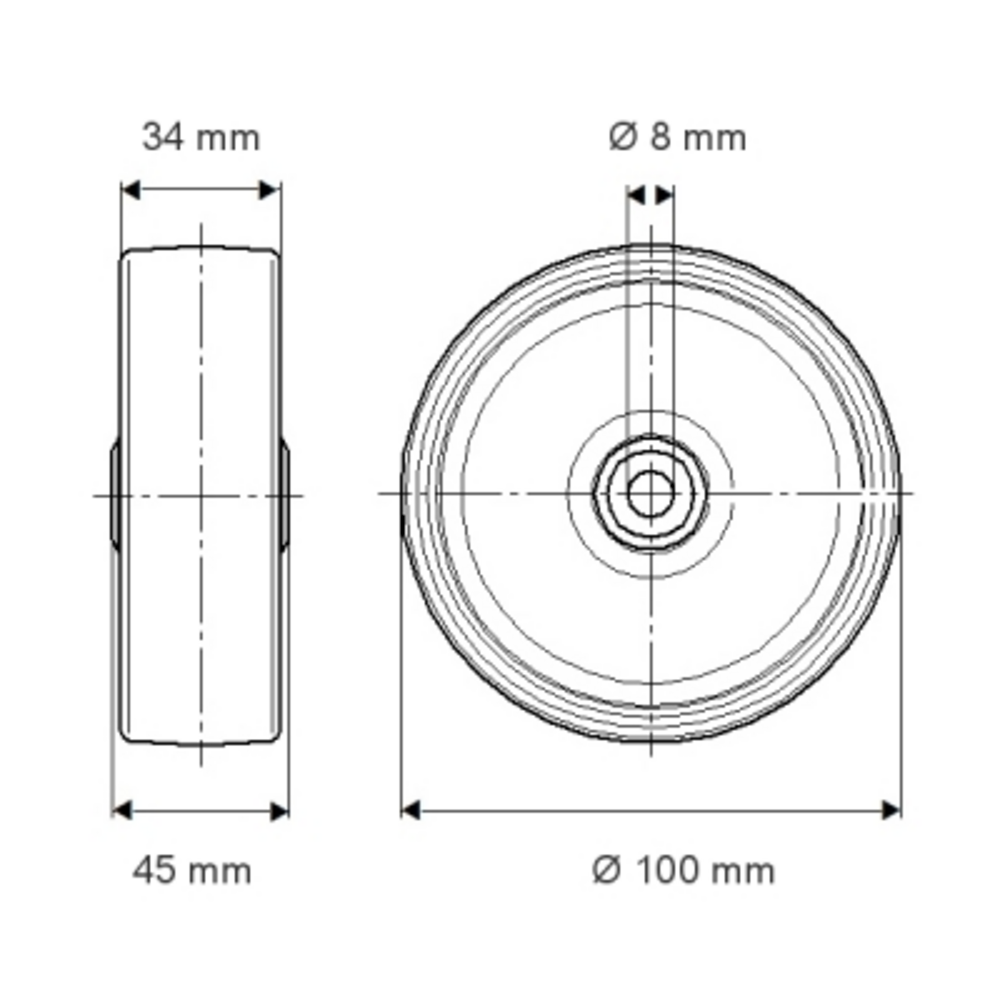

The Elastech wheel is a precision castor component engineered for demanding industrial applications, featuring a polyamide body with a 100 mm diameter and a 34 mm wide elastic tire constructed from non-marking, vulcanised material that ensures clean operation across sensitive environments. The wheel incorporates a precision ball bearing manufactured from stainless steel, providing reliable performance and corrosion resistance, whilst the hub measures 45 mm in length and accommodates an 8 mm axle hole diameter for secure mounting. This wheel delivers a static load capacity of 320 kg and a dynamic load capacity of 160 kg at speeds up to 4 km/h, making it suitable for a comprehensive range of applications including AMR systems, automated shuttle systems, automotive OEM requirements, catering carts and meal delivery systems, container construction, fire fighting technology, machine construction, post logistic systems, production and platform trolleys, professional cleaning carts, roll cages, scaffolding, tool cabinets, transport equipment, and work benches.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
UFC100X34@08X45
EAN
4031582422269
Core attributes
Housing type
Wheel
Load capacity at 4 km/h
160 kg
Load capacity Static
320 kg
Temperature range (Maximum)
80 °C
Temperature range (Minimum)
-20 °C
Overall weight
0.3 kg
Product name
Elastech
Standard
EN12532 - Transport Equipment
Electric conductive
Stainless
Wheel
Hardness of tread (A)
64 Shore A
Body material
Polyamide
Tread material
Elastic tire, non-marking, vulcanized
Axle hole diameter
8 mm
Hub length
45 mm
Tread width
34 mm
Diameter
100 mm
Threadguards
With threadguard
Bearing
Precision ball bearing, stainless
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
