Wheel 85 mm
Novatech
Order number:
199803770
EAN:
4031582318777
Product number:
ETP 085x75-Ø20 HL75
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision castor component engineered with a steel and iron body and a polyurethane, casted tread measur...
Details
Custom or high volume? Request a quote now.
Data sheets

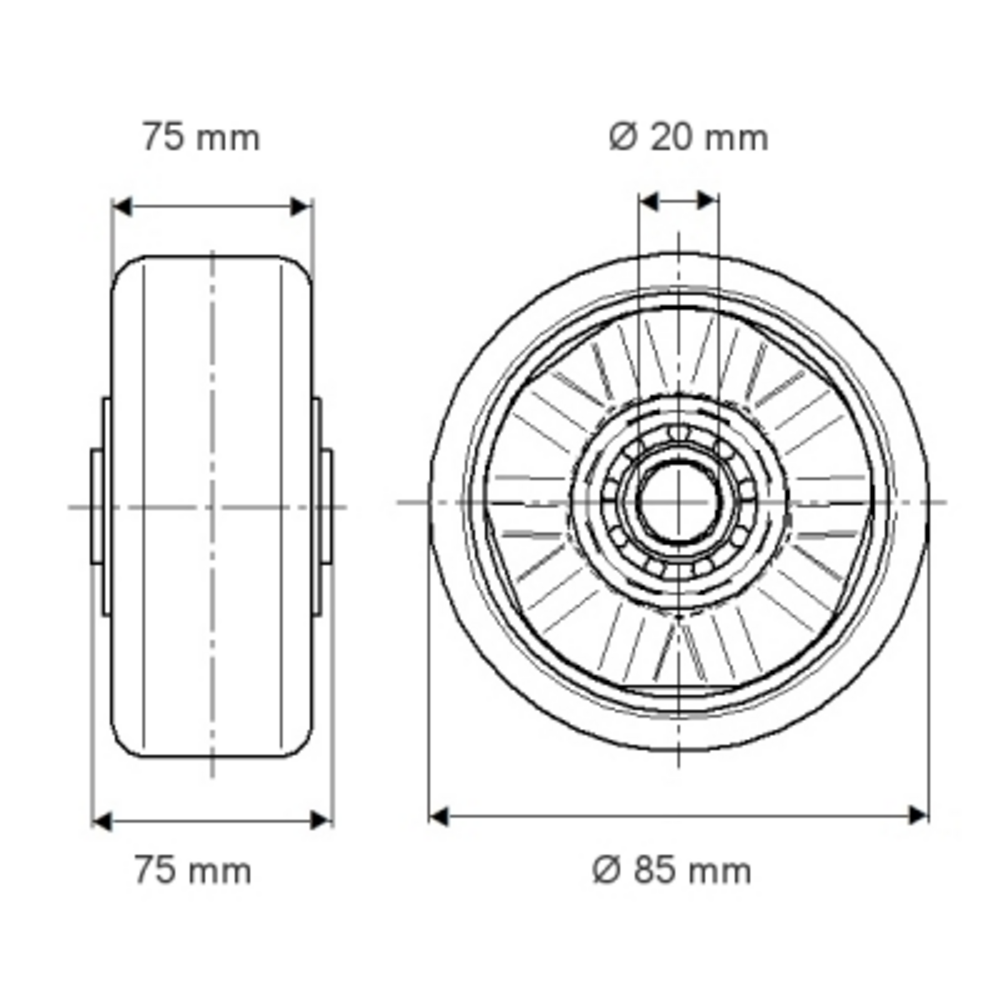

The Novatech wheel is a precision castor component engineered with a steel and iron body and a polyurethane, casted tread measuring 75 mm in width. The wheel features a diameter of 85 mm with a hub length of 75 mm and an axle hole diameter of 20 mm, accommodating standard castor mounting requirements. Equipped with a precision ball bearing for smooth rotation, this wheel delivers robust performance across demanding applications. The load capacity specifications indicate a static load rating of 1400 kg, whilst the dynamic load capacity reaches 560 kg at 6 km/h or 700 kg at 4 km/h, providing flexibility for various operational speeds and load conditions. These specifications make the Novatech wheel suitable for heavy-duty industrial and commercial castor applications requiring reliable performance and durability.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
