Wheel 100 mm
Novatech
Order number:
199839111
EAN:
4031582331288
Product number:
ETP 100x25-Ø25
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring a steel and iron ...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

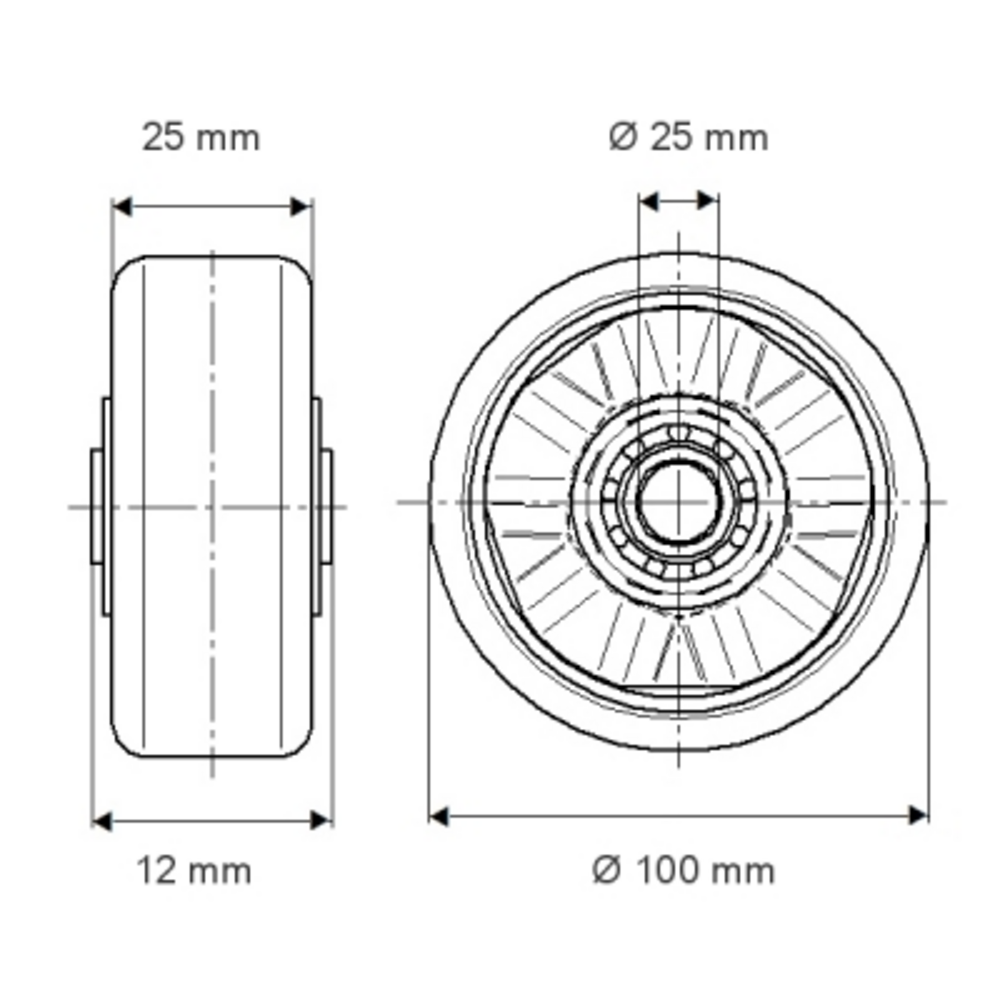

The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring a steel and iron body with a 100 mm diameter and a 25 mm wide polyurethane casted tread that provides excellent wear resistance and grip. The wheel accommodates a 25 mm axle hole diameter and incorporates a 12 mm hub length, ensuring compatibility with standard castor assemblies. Equipped with a precision ball bearing for smooth rotation and minimal friction, this wheel delivers robust performance across varied operational conditions. The load capacity specifications indicate a static load rating of 420 kg, whilst the dynamic load capacity reaches 170 kg at 6 km/h or 210 kg at 4 km/h, making it suitable for both light to medium-duty transport applications and heavier loads at reduced speeds. These specifications make the Novatech wheel an ideal choice for furniture, equipment trolleys, and industrial material handling systems where reliability and durability are paramount.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
